Removing High-Temperature Circuit Temperature Sensor

WARNING: This page is about a different variant/trim than selected.

WARNING: Hot fluid

Danger of scalding
→ Avoid contact with hot fluid.

→ Wear personal protective gear.

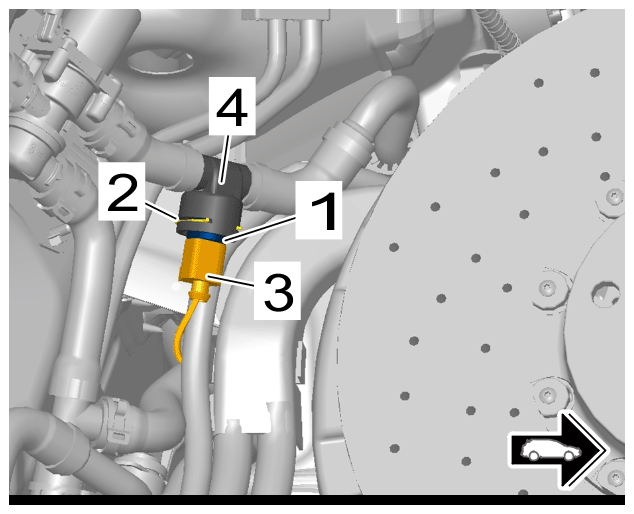

Remove high-temperature circuit temperature sensor -1- .
1. 1.1 Release and disconnect cable plug -2- .
2. 1.2 Pull off retaining clip -3- .
3. 1.3 Pull high-temperature circuit temperature sensor -1- out of line connection -4- .
4. 1.4 Catch escaping coolant and close off line connection -4- using a suitable stopper.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

High-temperature circuit temperature sensor (TW 12)
