Installing High-Temperature Circuit Temperature Sensor

1. 1.1 Insert high-temperature circuit temperature sensor -1-  in line connection -4-  .
2. 1.2 Insert retaining clip -2-  and check that it is fitted correctly.
3. 1.3 Connect and lock cable plug -3-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

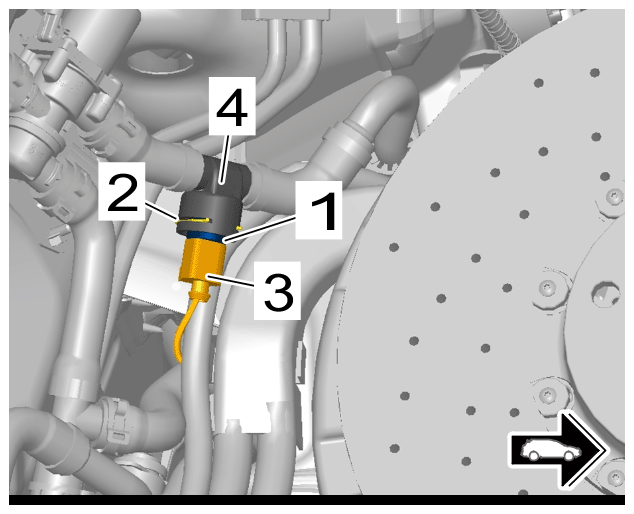

High-temperature circuit temperature sensor (TW 12)
