Installing Heat EXCHANGER For High-Temperature And Low-Temperature System

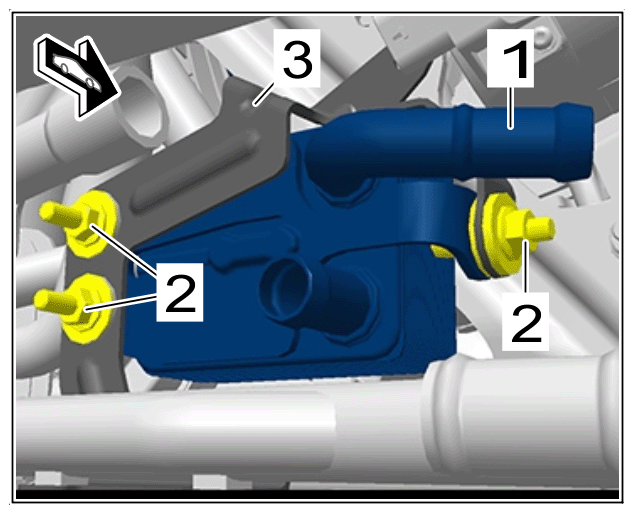

1. 1.1 Position heat exchanger for high-temperature and low-temperature system -1-  at the holder -3-  .
2. 1.2 Screw on and tighten nuts -2-  .

> Tightening torque 8 Nm (6 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heat exchanger for high-temperature and low-temperature system

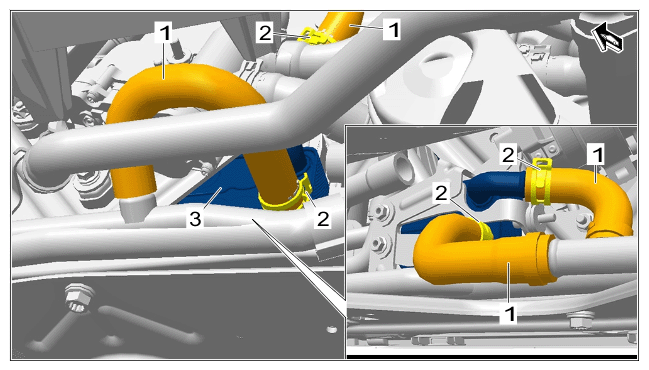

1. 2.1 Fit coolant hoses -1-  on heat exchanger for high-temperature and low-temperature system -3-  .
2. 2.2 Fasten spring band clamps -2-  using > VAS 6890 - Spring Band Clamp Pliers  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Coolant hoses for heat exchanger for high-temperature and low-temperature system
