Removing Change-Over Valve For Low-Temperature System

WARNING: This page is about a different variant/trim than selected.

WARNING: Hot fluid

Danger of scalding
→ Avoid contact with hot fluid.

→ Wear personal protective gear.

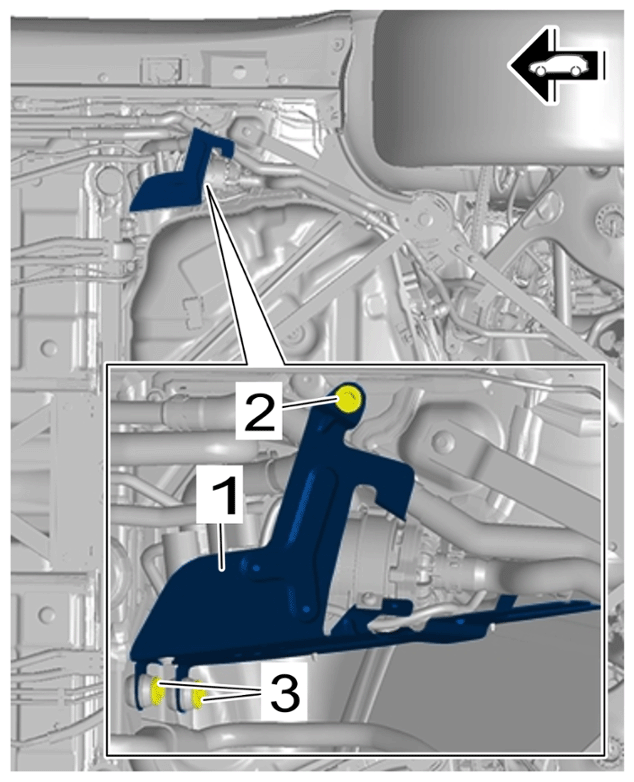

Loosen holder -1- .
1. 1.1 Screw off nut -2- .
2. 1.2 Unscrew and remove screws -3- .
3. 1.3 Move holder -1- so that the low-temperature circuit temperature sensor is accessible. Make sure not to damage any lines.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bracket

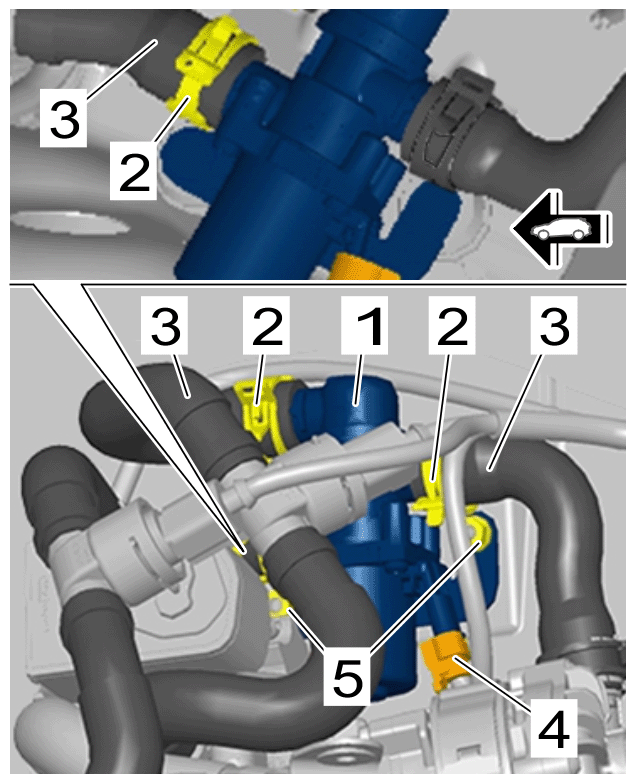

Remove change-over valve for low-temperature system -1- .
1. 2.1 Loosen spring band clamps -2- using > VAS 6890 - Spring Band Clamp Pliers and pull off coolant hoses -3- .
2. 2.2 Catch escaping coolant and close off line connections using suitable stoppers.
3. 2.3 Release and disconnect cable plug -4- .
4. 2.4 Unscrew nuts -5- .
5. 2.5 Remove change-over valve for low-temperature system -1- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Change-over valve for low-temperature system (UVW 1)
