Subsequent Work

WARNING: This page is about a different variant/trim than selected.

For V6 monoturbo engines:
Install charge-air cooler.

> WM, 214319 REMOVING AND INSTALLING CHARGE-AIR COOLER
For Hybrid vehicles:
Fill coolant for low-temperature system.

> 193817 DRAINING AND FILLING COOLANT (LOW-TEMPERATURE COOLING SYSTEM)
Fill in coolant.
> 193817 DRAINING AND FILLING COOLANT
Bleed the cooling system.
> 190107 BLEEDING THE COOLING SYSTEM
Install ATF cooler.
> 386019 REMOVING AND INSTALLING ATF COOLER
Install condenser.
> WM, 875019 REMOVING AND INSTALLING CONDENSER - Coupe or WM, 875019 REMOVING AND INSTALLING CONDENSER - Wagon

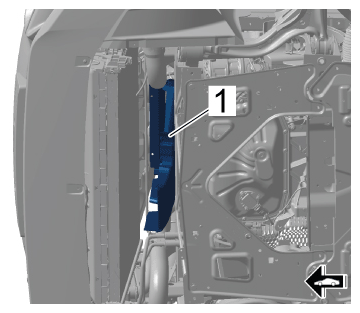

Position air guide -1- in the vehicle.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Air guide
Install cooling fan housing (radiator frame).
> 192019 REMOVING AND INSTALLING COOLING FAN HOUSING (RADIATOR FRAME)
Install front air guide.
> 192419 REMOVING AND INSTALLING FRONT AIR GUIDE
Install lock carrier.
> WM, 503819 REMOVING AND INSTALLING LOCK CARRIER
