Removing Radiator For Low-Temperature System
WARNING: This page is about a different variant/trim than selected.
- Remove radiator for low-temperature system -1-
.
- 1.1 Release locking lugs -2-
.
- 1.2 Remove radiator for low-temperature system -1-
from holder.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

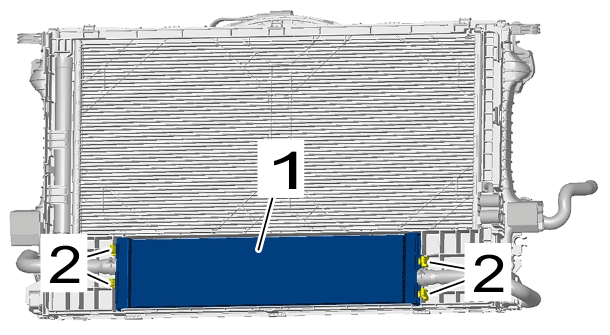

Radiator for low-temperature system
