Removing Directional-Control Valve For High-Temperature System (WMV 1)

WARNING: This page is about a different variant/trim than selected.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

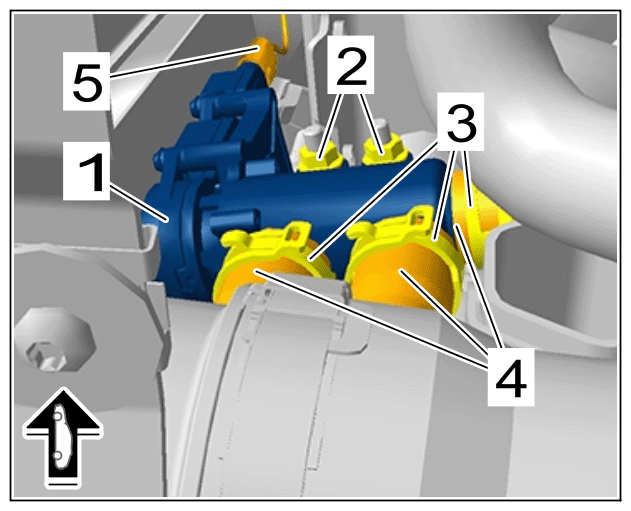

Directional-control valve for high-temperature circuit

1.1 Unscrew nuts -2- .
1.2 Loosen spring band clamps -3- using > VAS 6890 - spring band clamp pliers and pull off coolant hoses -4- .
1.3 Catch escaping coolant and close off line connections using suitable stoppers.
1.4 Release and disconnect electric plug connection -5- .
1.5 Remove directional-control valve for high-temperature system -1- .
