Installing Directional-Control Valve For High-Temperature System (WMV 1)

WARNING: This page is about a different variant/trim than selected.

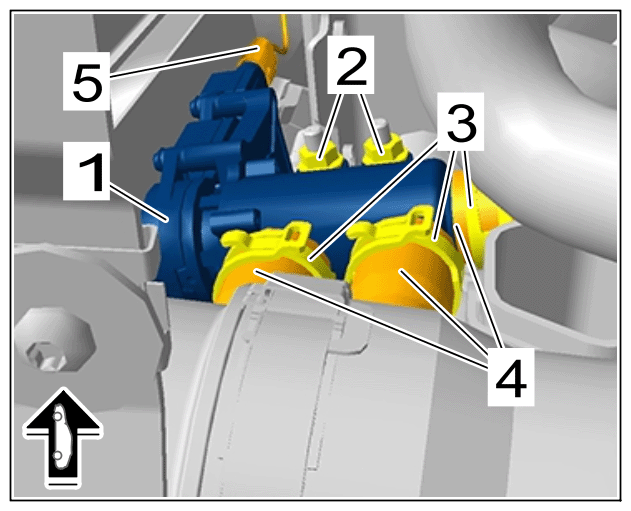

Install directional-control valve for high-temperature system -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Directional-control valve for high-temperature circuit
1. 1.1 Move directional-control valve for high-temperature circuit -1- into installation position.
2. 1.2 Connect and lock electric plug connection -5- .
3. 1.3 Push on coolant hoses -4- and tighten spring band clamps -3- using > VAS 6890 - spring band clamp pliers .
4. 1.4 Screw on and tighten nuts -2- .
  > Tightening torque 8 Nm (6 ftlb.)
