Removing Cooling-Air Flaps

WARNING: This page is about a different variant/trim than selected.
  1. Remove cooling air flaps -2-  from front bumper.
    1. 1.1 Unscrew and remove screws -1-  .
    2. 1.2 Remove cooling air flaps -2-  from front bumper.

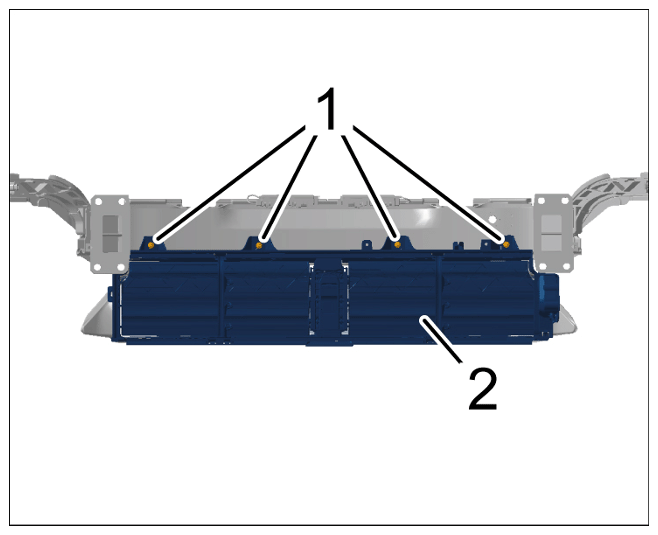

    G15823178Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing cooling-air flaps
