Removing Thermal Management Control Unit
WARNING: This page is about a different variant/trim than selected.

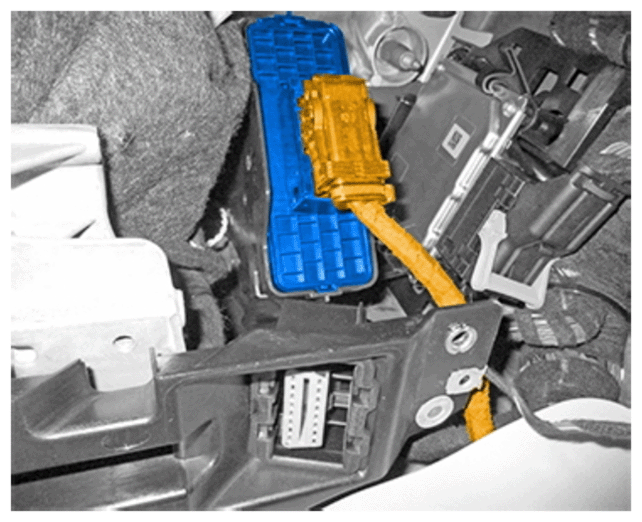

- Release and unplug electric plug connection for thermal management control unit.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Electric plug connection

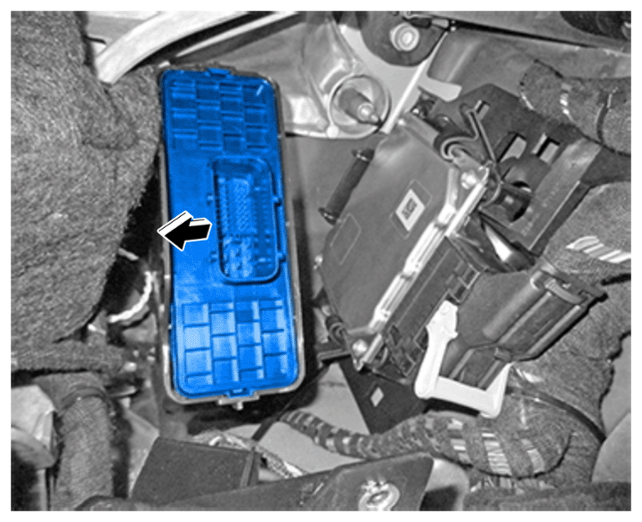

- Unclip control unit from the holder -arrow-
and pull it out.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Thermal management control unit
