Preliminary Work

WARNING: This page is about a different variant/trim than selected.

Remove cover under dashboard.
> WM, 702219 REMOVING AND INSTALLING COVER UNDER DASHBOARD - Coupe or WM, 702219 REMOVING AND INSTALLING COVER UNDER DASHBOARD - Wagon

If installed:
Remove knee airbag on driver's side.
> WM, 697819 REMOVING AND INSTALLING KNEE AIRBAG ON DRIVER'S SIDE - Coupe or WM, 697819 REMOVING AND INSTALLING KNEE AIRBAG ON DRIVER'S SIDE - Wagon

All:
Remove air guide for air conditioning system at the left.

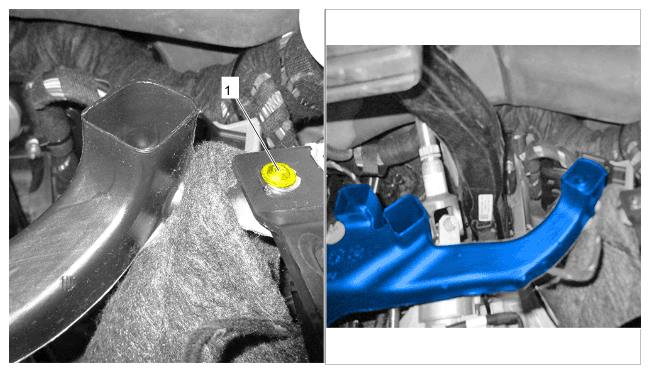

1. 3.1 Unscrew screw on left air guide -1 - .
2. 3.2 Pull off left air guide at the centre air guide and remove it.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Air guide for air conditioning system, left
