Subsequent Work: Notes

WARNING: This page is about a different variant/trim than selected.

Secure pressure hoses at the bottom on both sides of the charge-air cooler.
> 2X00IN TECHNICAL VALUES (V6 BITURBO)

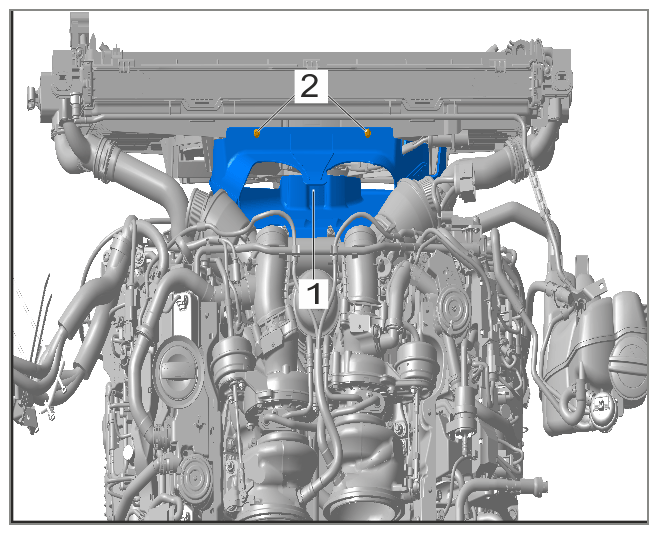

Install air guide -1- at the radiator frame.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Air guide at top of radiator frame
Install air-cleaner cowl.
> 242719 REMOVING AND INSTALLING AIR-CLEANER COWL

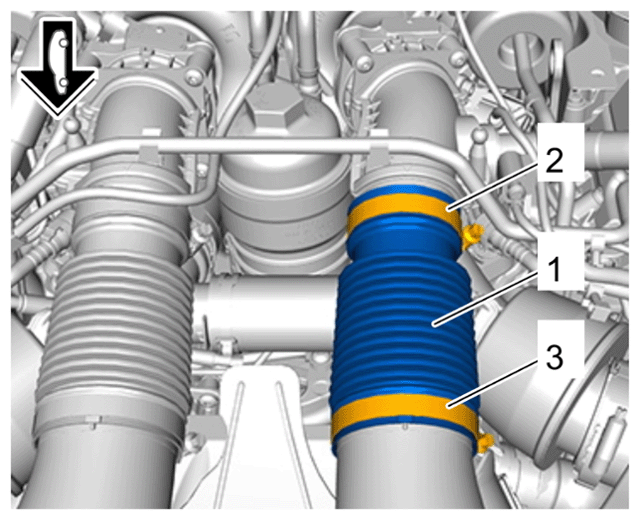

Secure both suction hoses -1- . Fit suction hoses and fasten clamps -3- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Suction hose
Install engine cover.
> 108319 REMOVING AND INSTALLING ENGINE COVER (DESIGN COVER) (V6 TURBO)
Install engine compartment trim panel.
> WM, 700219 REMOVING AND REINSTALLING FRONT TRIM PANEL (ENGINE COMPARTMENT)
Install front wheel housing liners.
> Removing and installing front wheel housing liner
Install rear cardan shaft.
> 393519 REMOVING AND INSTALLING REAR CARDAN SHAFT
Secure ATF lines to the ATF cooler.
> 386219 REMOVING AND INSTALLING LINE FOR ATF COOLING
Secure air-conditioning lines to the cooler.
> WM, 875019 REMOVING AND INSTALLING CONDENSER
Install exhaust system.
> 260119 REMOVING AND INSTALLING EXHAUST SYSTEM
Start the high-voltage system.
> 2X00IN ISOLATING HIGH-VOLTAGE SYSTEM FROM POWER SUPPLY/STARTING HIGH-VOLTAGE SYSTEM
Fill up coolant.
> 193817 DRAINING AND FILLING COOLANT (INCLUDES BLEEDING)

> 193817 DRAINING AND FILLING COOLANT (LOW-TEMPERATURE COOLING SYSTEM)
Fill in refrigerant.
> WM, 870317 DRAINING AND FILLING REFRIGERANT R1234YF
Check engine oil.
> 170101 CHECKING ENGINE OIL
Connect battery ground strap.
> 270619 REMOVING AND REINSTALLING BATTERY
Fill in ATF.
> 370235 CHECKING AND TOPPING UP ATF
Perform suspension alignment.
> 449503 PERFORMING FRONT AND REAR SUSPENSION ALIGNMENT
Perform a test drive.
After the cooling system has cooled down again, check the engine coolant level in the reservoir and top up to the Maximum mark if necessary.
