Preliminary Work

WARNING: This page is about a different variant/trim than selected.

WARNING: Working with ATF

Possible danger of injury or damage (e.g. swollen hoses, skin irritation, danger of slipping, etc.)
→ Before lines are opened, place a cloth underneath them!

→ Components that come into contact with ATF must be cleaned IMMEDIATELY with water!

→ Take appropriate protective measures (protective clothing, safety goggles, oil binding material)

→ Collect emerging ATF!

Isolate high-voltage system from power supply.
> 2X00IN ISOLATION FROM SUPPLY PRIOR TO PERFORMING MAINTENANCE TASKS ON E-HYBRID VEHICLES
Drain refrigerant.
> WM, 870317 DRAINING AND FILLING REFRIGERANT R1234YF

> WM, 870317 DRAINING AND FILLING REFRIGERANT R134A
Disconnect the battery ground strap.
> 270619 REMOVING AND REINSTALLING BATTERY
Remove front trim panel (engine compartment).
> WM, 700219 REMOVING AND REINSTALLING FRONT TRIM PANEL (ENGINE COMPARTMENT)
Remove engine cover.
> 108319 REMOVING AND INSTALLING ENGINE COVER (DESIGN COVER) (V6 TURBO)
Remove diagonal brace.
> 408619 REMOVING AND INSTALLING STRUT (A-STRUT)

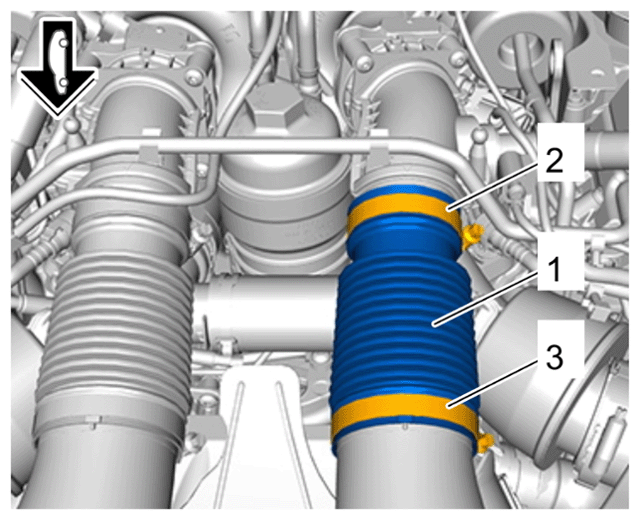

Disconnect suction hoses -1- . Open the clamps -2- and pull off suction hoses.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Suction hose
Remove air-cleaner cowl.
> 242719 REMOVING AND INSTALLING AIR-CLEANER COWL

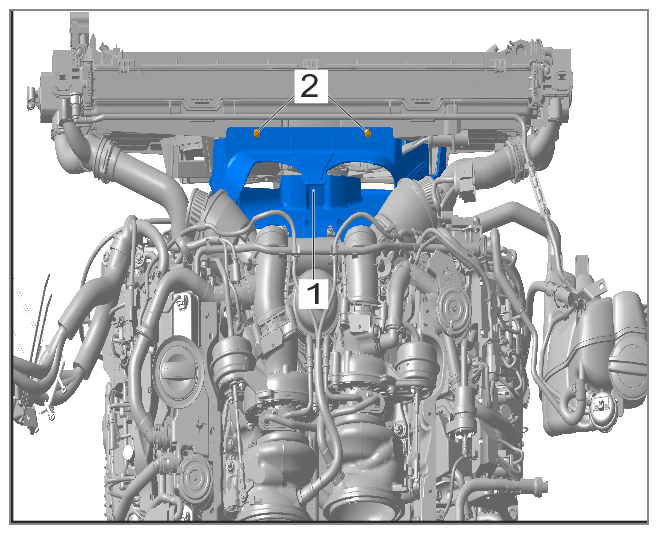

Remove air guide at the radiator frame.
1. 9.1 Remove clips -2- .
2. 9.2 Remove air guide -1- by pulling it upwards.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Air guide at top of radiator frame
Remove front wheel housing liners.
> Removing and installing front wheel housing liner
WARNING:
Refrigerant
- Danger of freezing
  → Avoid contact with refrigerant.

  → Wear personal protective gear.

  → Observe the safety regulations for working on air-conditioned vehicles and handling refrigerant.

  → Observe the safety regulations for extraction and filling systems.

  → Observe the instructions for repairing air-conditioning systems and storing spare parts.
NOTE:
Opened refrigerant system for repairs.
- Moisture penetrated into the refrigerant system.
- Risk of contaminating the refrigerant circuit.
- Risk of saturation and irreparable damage to desiccator.
- Irreparable damage to the desiccator can damage the compressor and evaporator.
  → The desiccator must be replaced if the air humidity is high and if the refrigerant circuit is left open for a long time.
Information
- Open connections and lines must be closed off using suitable stoppers or caps.

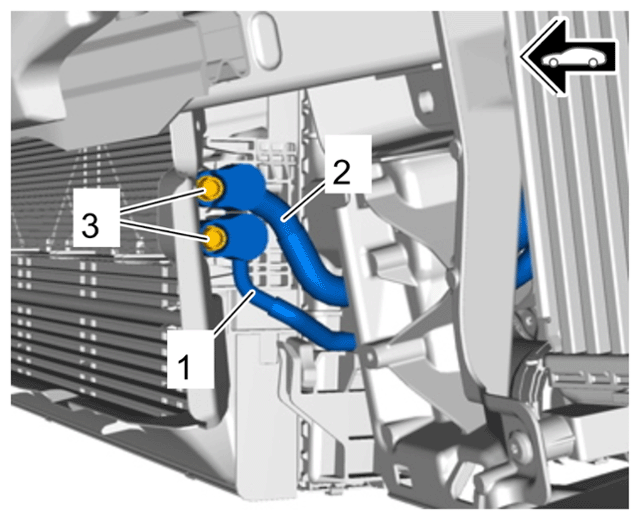

Disconnect air-conditioning lines -1- and -2- at the condenser.
1. 11.1 Loosen and unscrew screws -3- using > VAS 6928 - socket wrench set, 39-piece .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Air-conditioning lines on radiator (shown without front apron)
Remove exhaust system.
> 260119 REMOVING AND INSTALLING EXHAUST SYSTEM
Remove rear cardan shaft.
> 393519 REMOVING AND INSTALLING REAR CARDAN SHAFT

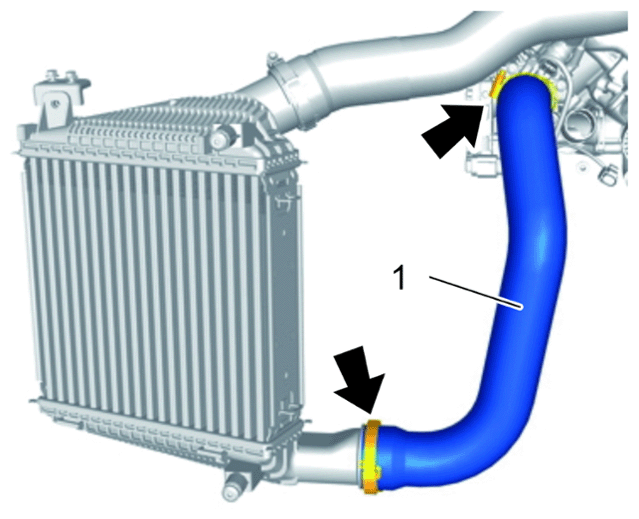

Loosen moulded hose -1- at the bottom on both sides of the charge-air cooler.
1. 14.1 Loosen screw-type clamp -bottom arrow - and pull off pressure hose.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Moulded hose from turbocharger to charge-air cooler
WARNING:
Hot fluid
- Danger of scalding
  → Let the fluid cool down.

  → Wear personal protective gear.
Drain coolant.
1. 15.1 High-temperature cooling system:
  > 193817 DRAINING AND FILLING COOLANT (INCLUDES BLEEDING)

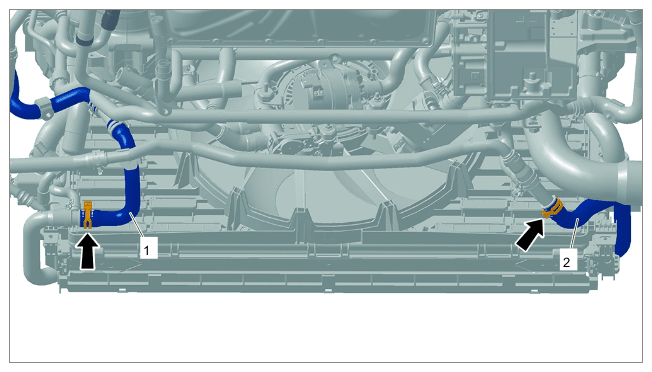

2. 15.2 Low-temperature cooling system: Loosen clamps -arrows- and pull off coolant lines -1- and -2- .
3. 15.3 Collect emerging coolant.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front coolant lines

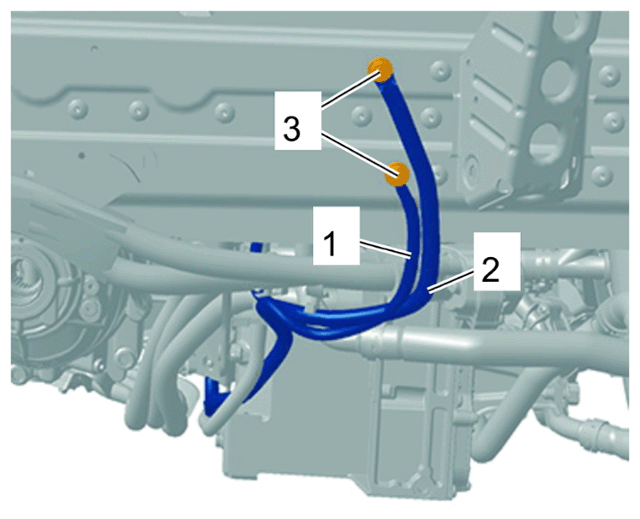

Disconnect ground cable -1- and -2- on the front right longitudinal member.
1. 16.1 Unscrew nuts -3- and remove ground cable -1- and -2- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Ground cables on right longitudinal member
Loosen high-voltage lines from high-voltage battery to the power electronics.
> 279319 REMOVING AND INSTALLING HIGH-VOLTAGE LINE FROM POWER ELECTRONICS TO HIGH-VOLTAGE BATTERY
Disconnect high-voltage lines on the air-conditioning compressor.
> 279319 REMOVING AND INSTALLING HIGH-VOLTAGE LINE FROM AIR-CONDITIONING COMPRESSOR TO CONNECTION POINT IN FRONT LEFT WHEEL HOUSING
