Preliminary Work

WARNING: This page is about a different variant/trim than selected.
NOTE: Dirt and contamination
  • Risk of damage to units or components

    → Protect components from dirt and contamination.

    → Clean or replace dirty components.

Information

Information

  1. Remove engine.

    > 100119 REMOVE AND INSTALL ENGINE

  2. Removing transmission.

    343527 INSTALLING AND UNINSTALLING TRANSMISSION

    373427 REMOVING AND MOUNTING PORSCHE DOPPELKUPPLUNG (PDK)

  3. Removing flywheel

    136019 REMOVING AND INSTALLING FLYWHEEL

    136019 REMOVING AND INSTALLING FLYWHEEL - PORSCHE DOUBLE-CLUTCH TRANSMISSION

  4. Mount the engine on the engine assembly support.

    > 1001IN TOOLS FOR REMOVING UNITS AND WORKING ON THE ENGINE ASSEMBLY SUPPORT

  5. Drain engine oil.

    170117 DRAIN AND ALL ENGINE OIL

  6. Remove exhaust system.

    260119 REMOVING AND INSTALLING EXHAUST SYSTEM

    Information

    Do not loosen screws between the drive belt cover and generator cover.

  7. Remove drive belt cover and generator cover.

    138419 REMOVE AND INSTALL DRIVE BELT COVER

  8. Remove drive belt.

    137819 REMOVE AND INSTALL DRIVE BELT

  9. Remove valve block for vacuum system with vacuum lines.

    242319 REMOVING AND INSTALLING VALVE BLOCK

    Information

    First, unscrew the top screws, then the bottom screws on the exhaust manifold.

  10. Remove turbocharger with exhaust manifold and lines.

    213019 REMOVING AND INSTALLING TURBOCHARGER

    261019 REMOVING AND INSTALLING EXHAUST MANIFOLD

  11. Remove lea: shield.

    261219 REMOVING AND INSTALLING SHIELD

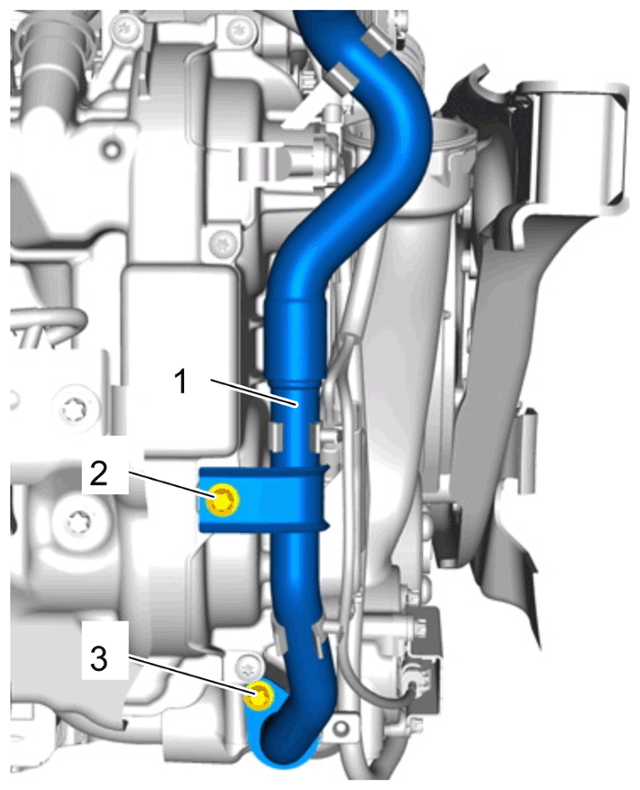

  12. Remove coolant pipe -1-  from the coolant regulator housing.

    Unscrew -2-  screw on coolant pipe holder.

    Unscrew -3-  screw on coolant regulator housing.

    Remove coolant pipe and replace O-rings.

    G15485350Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Coolant pipe on coolant regulator housing

  13. Remove high-pressure pumps.

    246319 REMOVING AND INSTALLING HIGH-PRESSURE PUMP

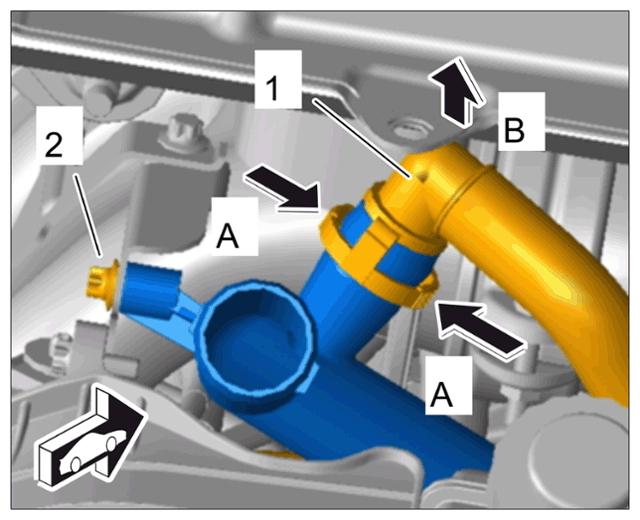

  14. Disconnect positive crankcase ventilation line and oil filler neck holder on the intake-air distributor.

    Press latching ring on the vent line -1-  together -Arrows A-  and pull off vent line -1-  in -Arrow direction B-  .

    Unscrew -2-  screws on holder.

    G15485351Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screw on upper holder and vent line

  15. Remove intake distributor.

    244619 REMOVING AND INSTALLING INTAKE DISTRIBUTOR

  16. Remove engine wiring harness.

    970909 LOOSENING AND SECURING MAIN WIRING HARNESS IN ENGINE COMPARTMENT

  17. Remove fuel lines.

    249019 REMOVE AND INSTALL FUEL LINE

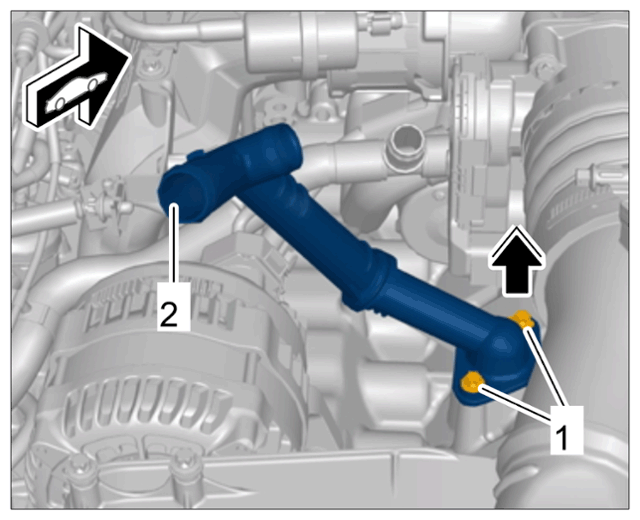

  18. Remove -2-  oil filler neck.

    Unscrew screws -1-  .

    Pull oil filler neck -Arrow direction-  out of the crankcase in.

    Close off line connections using suitable stoppers.

    G15485352Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Lower part of oil filler neck on crankcase

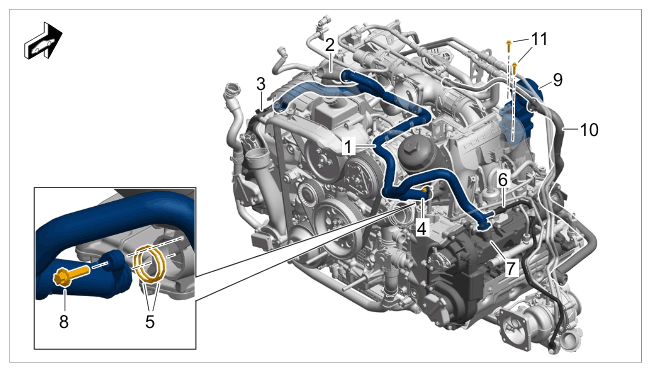

  19. Remove positive crankcase ventilation line. -1-

    Unscrew screw on oil module -4-  and disconnect adapter.

    Replace O-rings -5-  .

    Unclip -3 and 7-  connections.

    Disconnect positive crankcase ventilation line, unclip it from the holder and remove it.

    G15485353Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Overview of positive crankcase ventilation

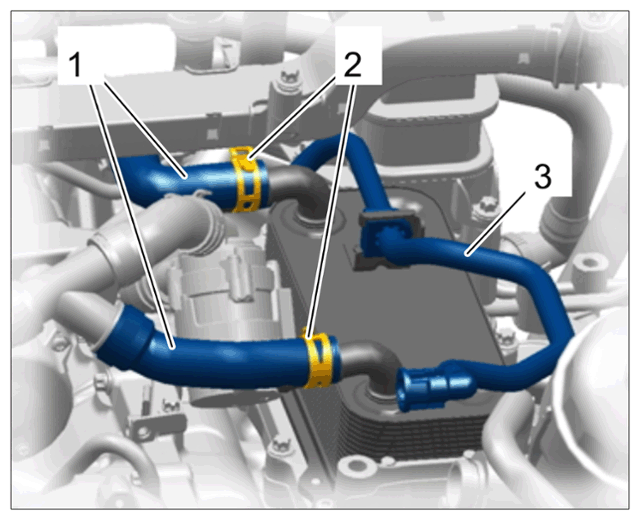

  20. Disconnect -1-  coolant hoses from the oil cooler.

    Release spring band clamps -2-  using > VAS 6890 - spring band clamp pliers  and disconnect coolant hoses from the power electronics -1-  .

    Unclip positive crankcase ventilation line -3-  .

    For vehicles with PDCC (Porsche Dynamic Chassis Control):  Pull off hydraulic lines (not shown).

    Close off line connections using suitable stoppers.

    G15485354Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Coolant lines and positive crankcase ventilation on oil cooler

  21. Loosen -1-  coolant collection unit.

    Unscrew screws -2-  .

    G15485355Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Coolant collection unit

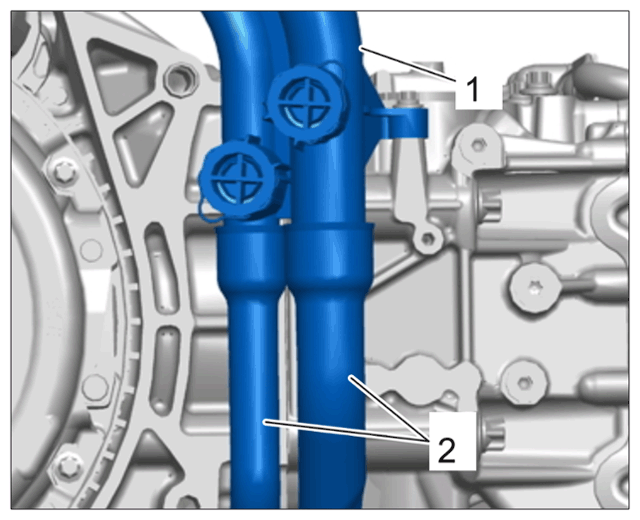

    Pull coolant collection unit -1-  out of the connecting pipes -2-  .

    G15485356Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Coolant collection unit and connecting pipes

    Replace O-rings.

  22. Remove hall sender.

    283919 REMOVING AND INSTALLING HALL SENDER

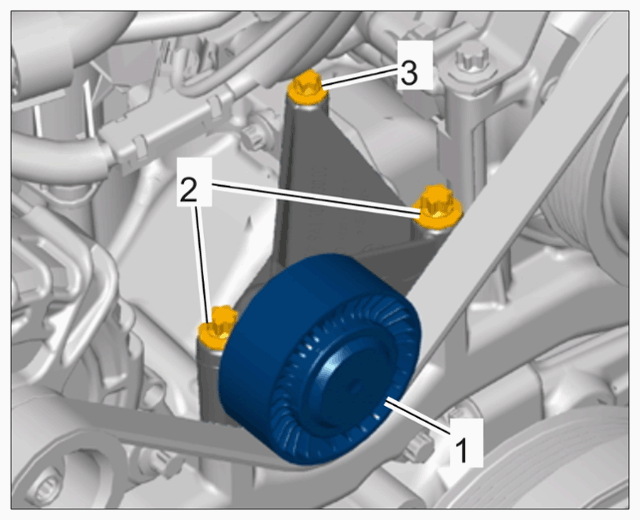

  23. Vehicles without Porsche Dynamic Chassis Control (PDCC):  Unscrew screw -2 and 3-  and remove support with deflection roller -1-  .
    G15485357Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Deflection roller bracket

  24. Vehicles with Porsche Dynamic Chassis Control (PDCC):  Remove pump (PDCC) together with pressure and return lines.

    430619 REMOVING AND INSTALLING PUMP (PDCC)

  25. Remove the generator.

    272219 REMOVE AND INSTALLING GENERATOR

  26. Remove compressor.

    873419 REMOVING AND INSTALLING THE COMPRESSOR

  27. Remove the starter.

    276019 REMOVING AND INSTALLING STARTER

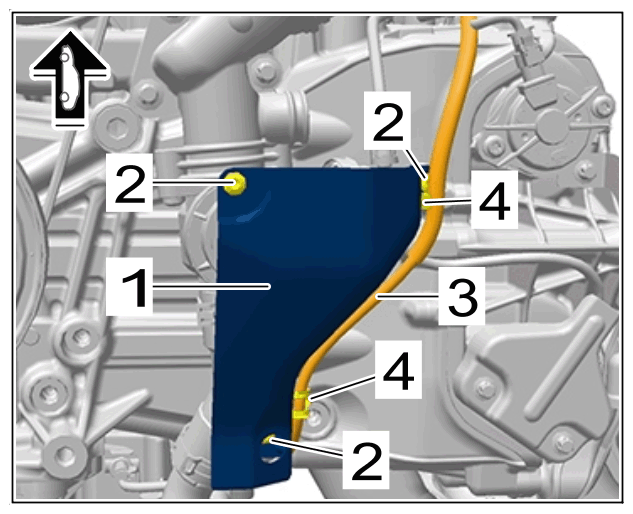

  28. Remove heat shield for coolant connection piece -1-  .

    Unclip clip -4-  from cross member and move electric line -3-  aside.

    Unscrew screws -2-  .

    Remove heat shield for coolant connection piece -1-  .

    G15485358Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Heat shield on coolant connection piece

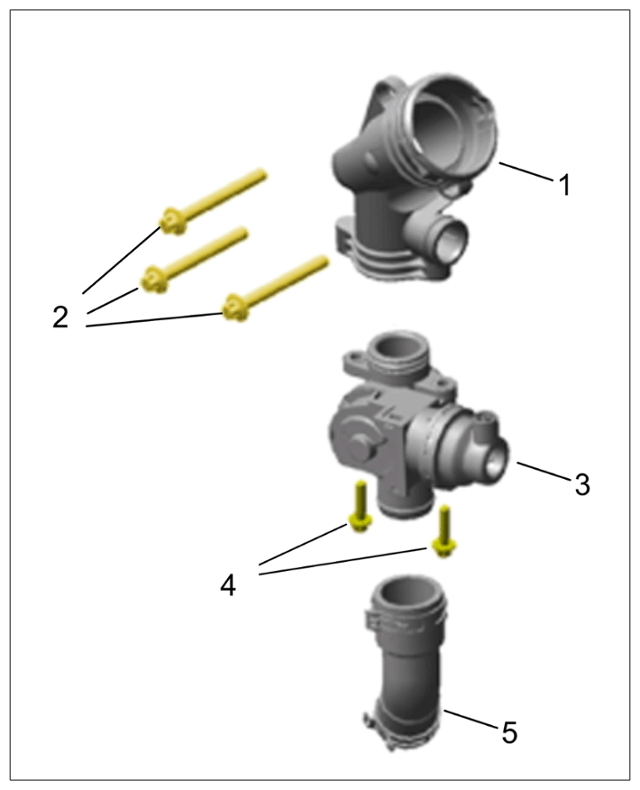

  29. Unscrew screws -2-  on coolant -1-  connection piece.
    G15485359Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Switching valve with coolant connection piece

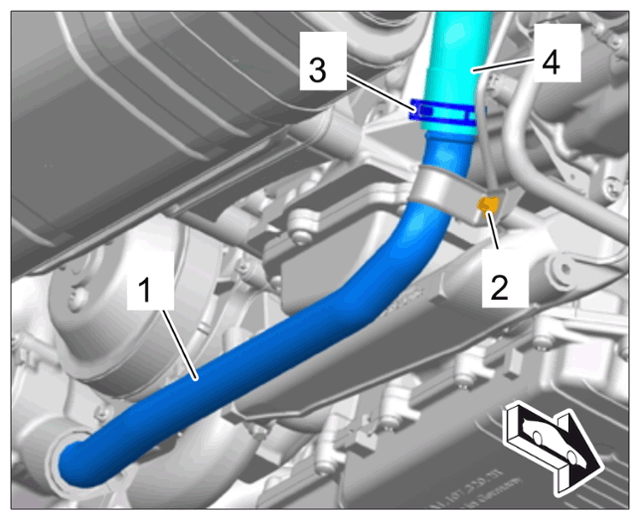

  30. Remove coolant connection piece with directional-control valve and coolant pipe.

    Unscrew screws on holder -2-  .

    Pull off lower -1-  coolant pipe.

    Remove coolant connection piece together with directional-control valve and coolant pipe.

    G15485360Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Lower coolant pipe

  31. Remove belt tensioner damper.

    137319 REMOVING AND INSTALLING BELT TENSIONER DAMPER

  32. Remove coolant distributor housing.

    195919 REMOVING AND INSTALLING COOLANT DISTRIBUTOR HOUSING

  33. Remove oil cooler bracket with oil cooler.

    176719 REMOVING AND INSTALLING OIL COOLER BRACKET

    If necessary, remove oil cooler, clean components by hand and replace seals.

    174019 REMOVE AND INSTALL OIL COOLER (OIL/WATER HEAT EXCHANGER)

  34. Remove knock sensor.

    287219 REMOVING AND INSTALLING KNOCK SENSOR

  35. Remove the cylinder head cover.

    158219 REMOVING AND INSTALLING CYLINDER HEAD COVER

  36. Remove camshafts.

    150520 REMOVING AND INSTALLING CAMSHAFT ACTUATORS (INCLUDES SETTING CONTROLS)

  37. Remove cylinder head at the left and right.

    157019 REMOVING AND INSTALLING CYLINDER HEAD

  38. Removing solenoid valve for valve lift adjustment.

    155519 REMOVE AND INSTALL SOLENOID VALVE FOR VALVE LIFT ADJUSTMENT

  39. Remove coolant regulator housing.

    195519 REMOVE AND INSTALL COOLANT REGULATOR HOUSING

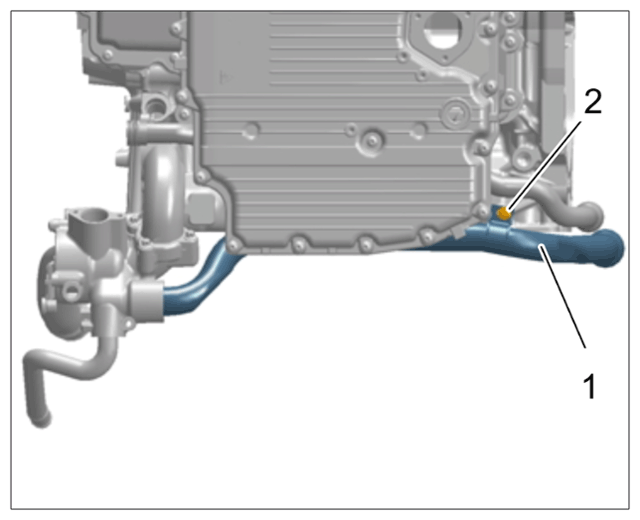

  40. Remove coolant connecting tube.

    Unscrew screw -2-  on the retaining bracket and remove coolant connecting tube.

    G15485361Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Coolant connecting tube for coolant regulator housing

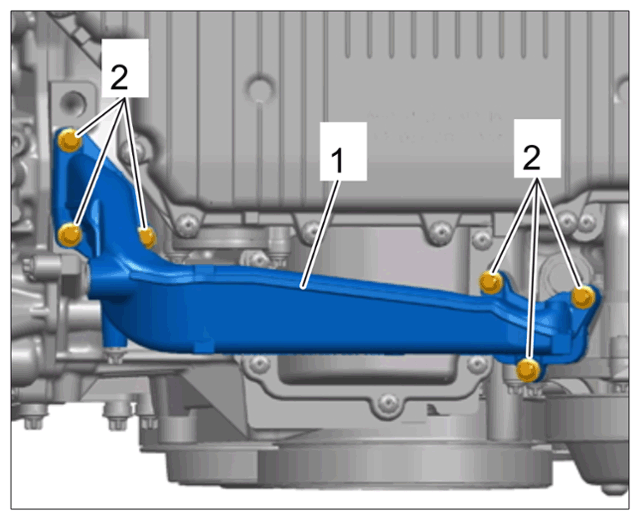

  41. Remove lower coolant guide -1-  .

    Unscrew screws -2-  and remove lower coolant guide -1-  .

    G15485362Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Lower coolant guide

  42. Remove coolant pump.

    195019 REMOVING AND INSTALLING COOLANT PUMP
