Component Overview Of Cylinder Head Cover

WARNING: This page is about a different variant/trim than selected.

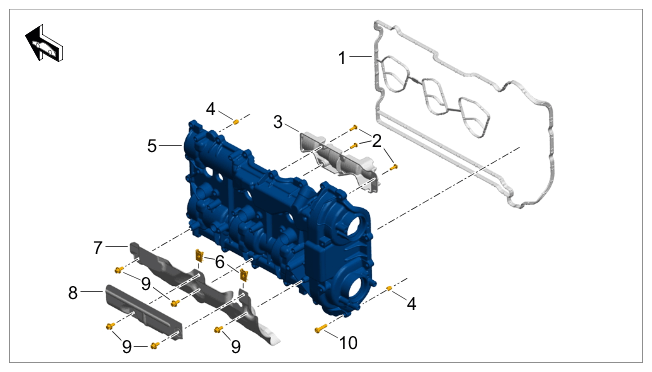

Fig 1: Cylinder Head Cover Components Location (Bank 1-3)
G15485771Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Assembly overview - cylinder head cover (view of bank 1-3)

1  Cylinder head cover seal
2  Screw, M5 x 14 for pre-separator
3  Pre-separator
4  Dowel sleeve
5  Cylinder head cover
6  Speed nut, M6
7  Lower part of heat shield
8  Upper part of heat shield
9  Screw, M6 x 12
10  Screw, M6 x 25 - cylinder head cover
