Removing Valve-Stem Seal

WARNING: This page is about a different variant/trim than selected.
  1. Pull off valve-stem seals using > 3364 - puller  .
    G15485760Courtesy of PORSCHE CARS NORTH AMERICA, INC.

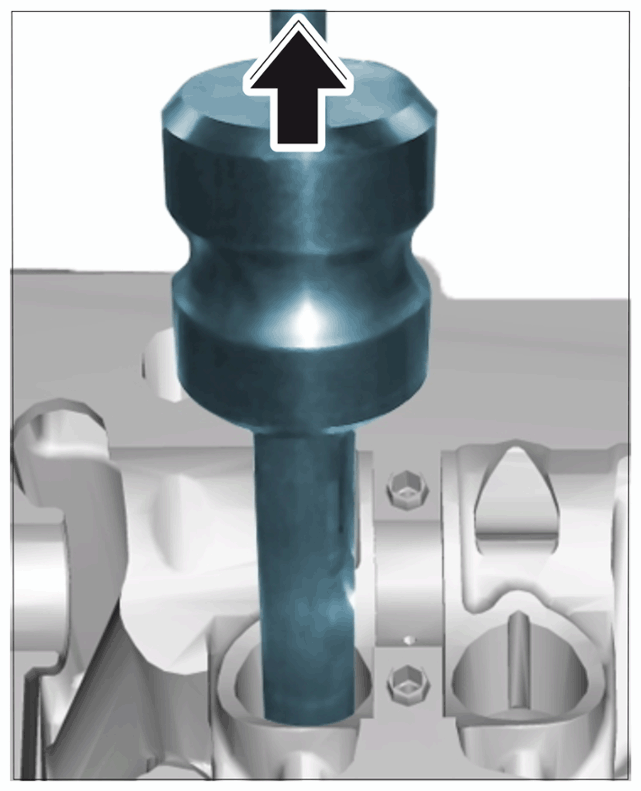

    Pulling off valve-stem seal

  2. Check valve springs, valves, valve guides and valve seats for damage and replace if necessary.
  3. Thoroughly clean cylinder head and all parts before assembly.
