Installing Cylinder Head (Cylinders 1 -3)

Carefully fit cylinder head on the cylinder block.

Screw in new  cylinder head screws -1 to 8-  by hand.

Tighten cylinder-head screws in the sequence -1 to 8-  ,

> Initial tightening 5 Nm (3.5 ftlb.)

> Tightening torque 50 Nm (37 ftlb.)

> Loosen all screws 0Nm (0 ftlb.)

> Initial tightening 4 Nm (3 ftlb.)

> Subsequent tightening 12 Nm (9 ftlb.)

-1 to 4-  : > Torque angle 65 Grad

-5 to 8-  : > Torque angle 60 Grad

-1 to 4-  : > Final tightening torque angle 65 Grad

-5 to 8-  : > Final tightening torque angle 60 Grad

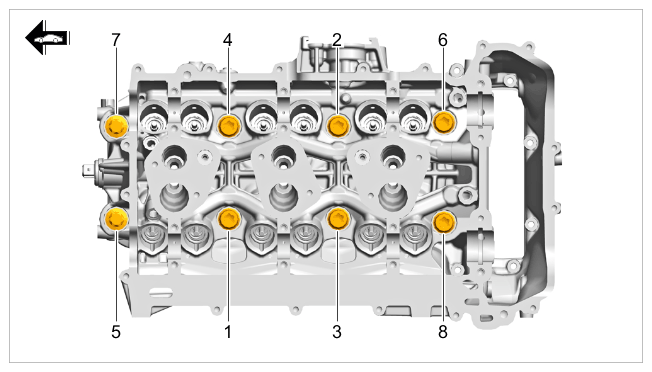

Fig 1: Cylinder Head Screws Tightening Sequence

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tightening sequence for cylinder head

> Tightening torque 13 Nm (9.5 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

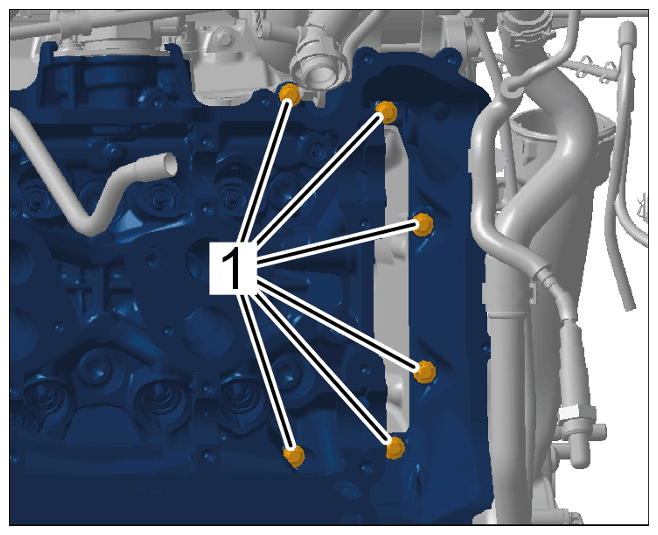

Chain housing screws

Screw in and tighten screws -2-  .

> Tightening torque 13 Nm (9.5 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

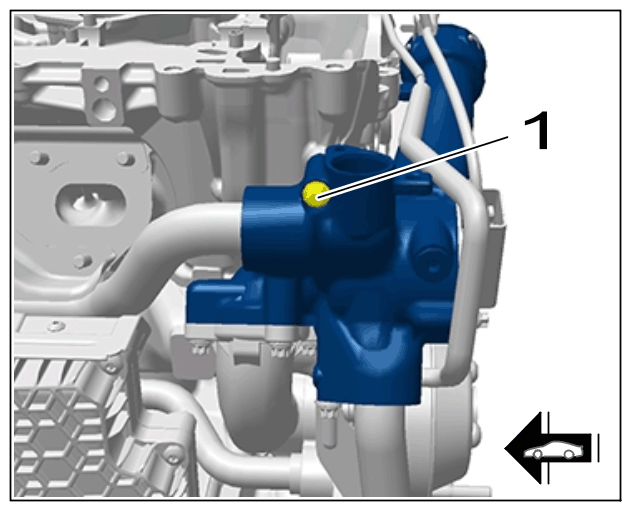

Coolant collection unit

Clip in clip -3-  .

Connect and lock electric plug connection -2-  .

Screw in and tighten screw on line bracket -1-  .

> Tightening torque 10 Nm (7.5 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

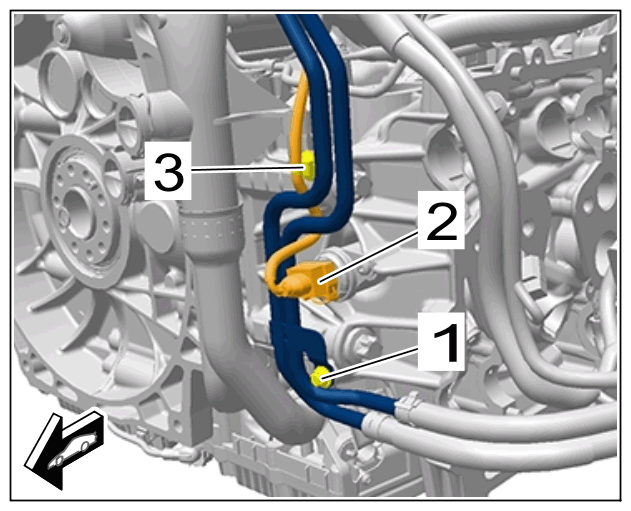

Lines on cylinder head

> Tightening torque 13 Nm (9.5 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Coolant regulator at cylinder head

Replace O-rings

Screw in and tighten bearing pins -2-  .

> Tightening torque 10 Nm (1.5 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

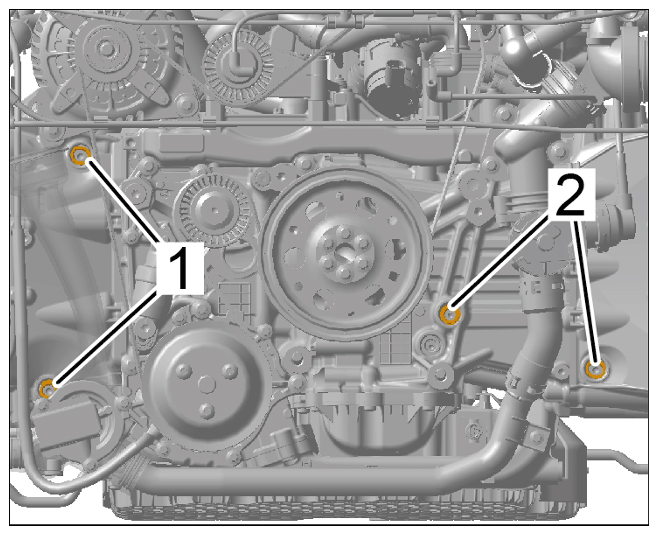

Position of bearing pins

> Tightening torque 15 Nm (11 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw on generator

Visually inspect hydraulic tappets -1 and 2-  for wear and replace them if necessary.

Coat hydraulic tappets -1 and 2-  with engine oil.

Insert bucket tappets and switching tappets in accordance with allocation into the fitting bores in the cylinder head.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

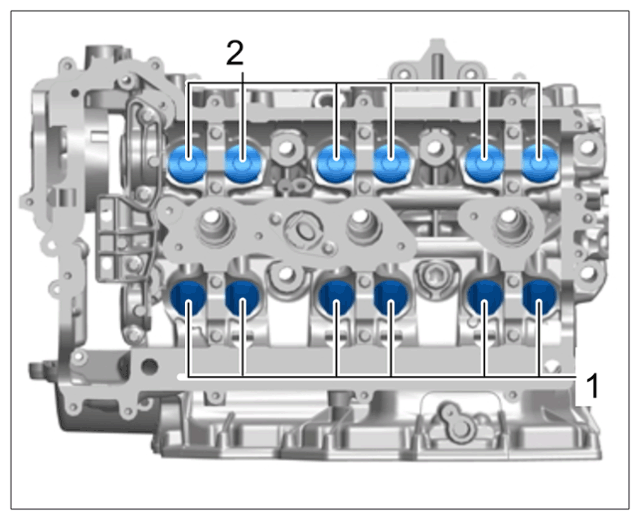

Hydraulic tappets for valve control
