Installing Cylinder Head (Cylinders 4-6)

Carefully fit cylinder head on the cylinder block.

Screw in new  cylinder head screws -1 to 8-  by hand.

Tighten cylinder-head screws in the sequence -1 to 8-  .

> Initial tightening 5 Nm (3.5 ftlb.)

> Tightening torque 50 Nm (37 ftlb.)

> Loosen all screws 0 Nm (0 ftlb.)

> Initial tightening 4 Nm (3 ftlb.)

> Subsequent tightening 12 Nm (9 ftlb.)

-1 to 4-  : > Torque angle 65 Grad

-5 to 8-  : > Torque angle 60 Grad

-1 to 4-  : > Final tightening torque angle 65 Grad

-5 to 8-  : > Final tightening torque angle 60 Grad

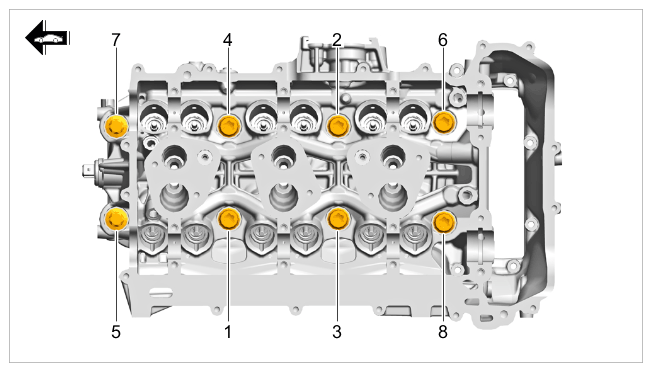

Fig 1: Cylinder Head Screws Tightening Sequence

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tightening sequence for cylinder head

> Tightening torque 13 Nm (9.5 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

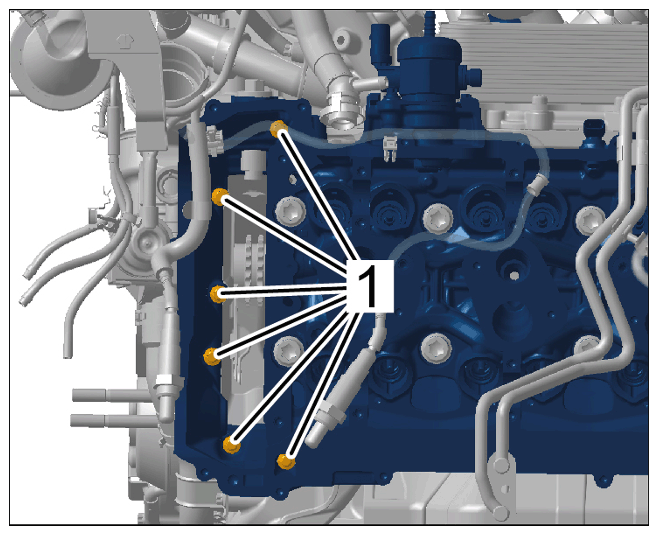

Chain housing screws

Replace O-rings

Screw in and tighten bearing pins -2-  .

> Tightening torque 10 Nm (7.5 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

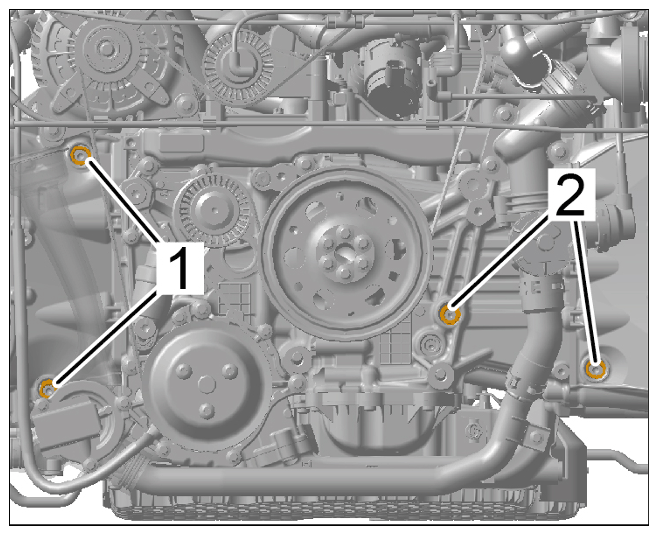

Position of bearing pins

> Tightening torque 10 Nm (7.5 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

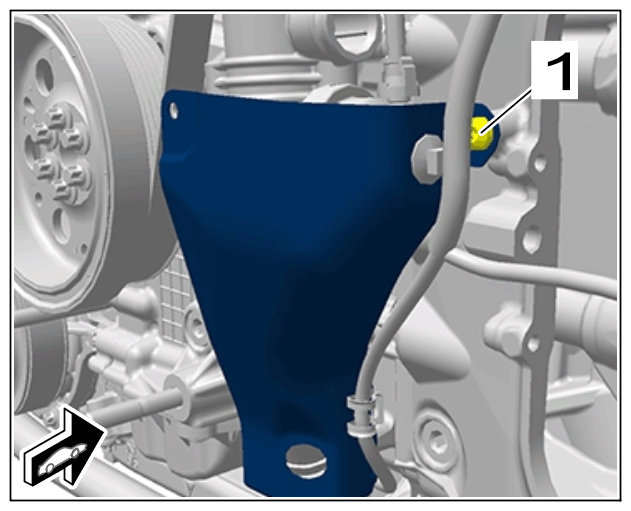

Heat shield

Connect lines -2-  .

Screw in and tighten screws -1-  .

> Tightening torque 10 Nm (7.5 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

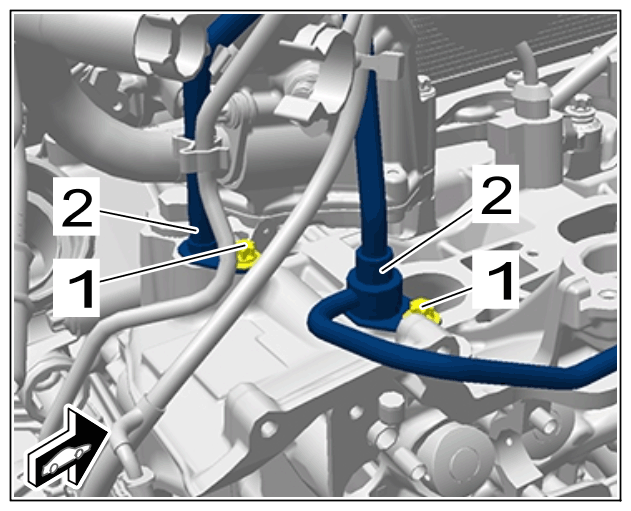

Line connections on cylinder head

Screw in and tighten screw on fuel line holder.

> Tightening torque 13 Nm (9.5 ftlb.)

Connect and lock electric plug connections.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

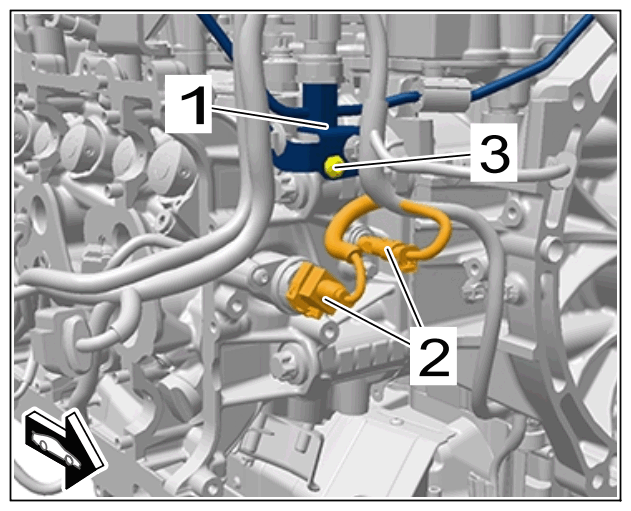

Fuel line holder

Visually inspect hydraulic tappets -1 and 2-  for wear and replace them if necessary.

Coat hydraulic tappets -1 and 2-  with engine oil.

Insert bucket tappets -1-  and switching tappets -2-  in accordance with allocation into the fitting bores in the cylinder head.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

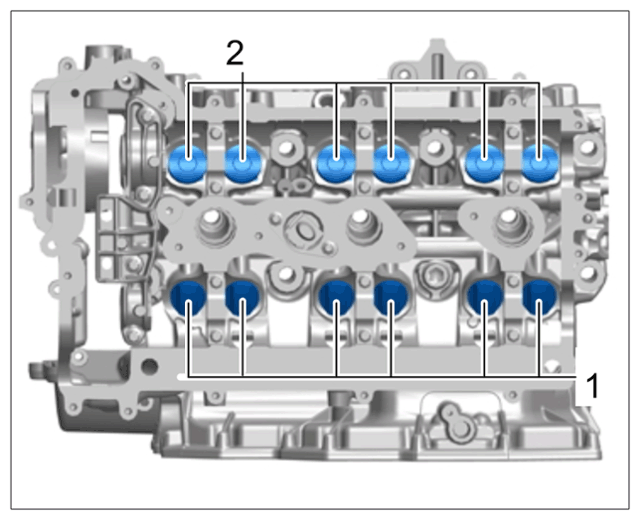

Hydraulic tappets for valve control
