Installing Hydraulic Valve For Valve Lift Adjustment

WARNING: This page is about a different variant/trim than selected.

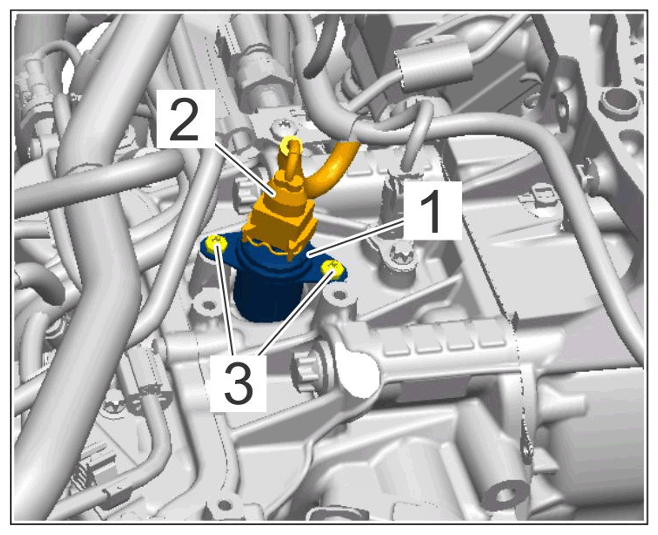

  1. Coat new O-ring on the valve with new engine oil.
  2. Install valve -1-  with new O-ring

    Fit valve.

    Fit and tighten screws -3-  .

    > Tightening torque 8 Nm (6 ftlb.)

    Connect cable plug -2-  .

    G15485709Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Valve for valve lift adjustment

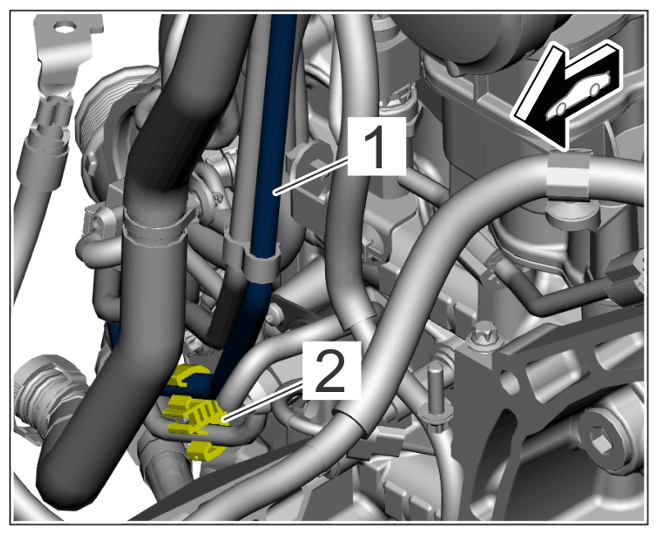

  3. Cylinder bank 4-6:

    Unclip coolant line -1-  at holder -2-  .

    G15485710Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Coolant line on turbocharger
