Removing Chain Tensioner - Cylinder Bank 1 -3

WARNING: This page is about a different variant/trim than selected.

Remove chain tensioner -1- .
Unscrew chain tensioner -1- and set down on a clean surface.

Collect escaping engine oil and close off the opening using a suitable stopper.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Chain tensioner for cylinder bank 1-3
Clean chain tensioner -1- and sealing face, replace sealing ring -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

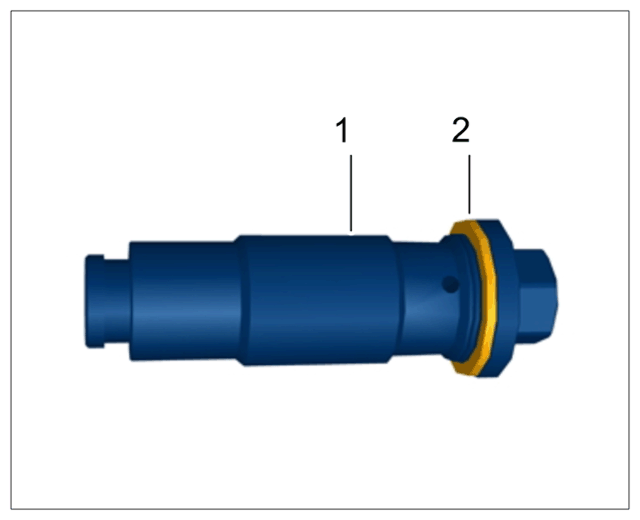

Chain tensioner with sealing ring
