Installing Chain TENSIONER - Cylinder Bank 4-6

WARNING: This page is about a different variant/trim than selected.
  1. Install chain tensioner -1-  .

    Screw in and tighten chain tensioner -1-  .

    > Tightening torque 80 Nm (59 ftlb.)

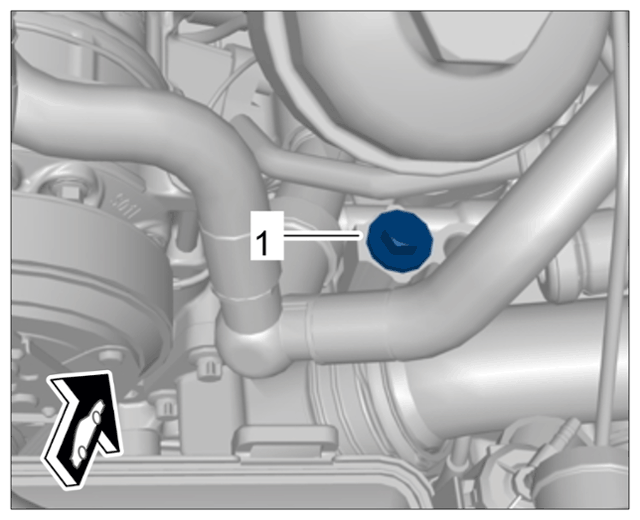

    G15485699Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Chain tensioner for cylinder bank 4-6
