WM, 150520 Removing And Installing Camshafts (Includes Setting Timing): Tools

WARNING: This page is about a different variant/trim than selected.

Tool denomination	Type	Tool number	Image

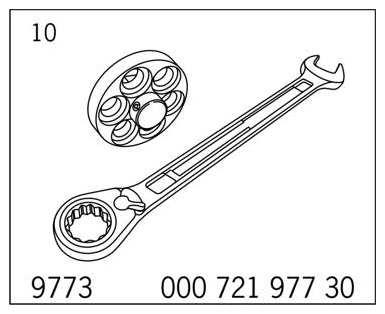

turning device	Special tool	> 9773	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

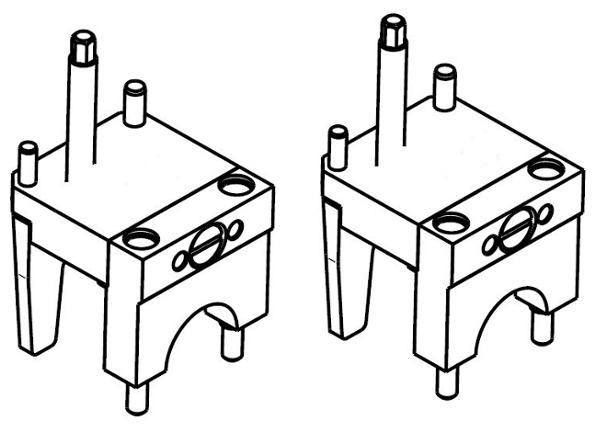

locating pin	Special tool	> 9595/1	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

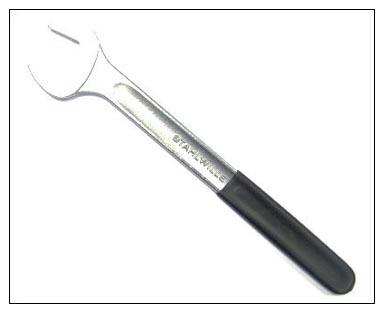

Open-ended wrench, a/f 39	Special tool	> 9863/3	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Socket wrench for camshaft	Special tool	> 9863	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Torque wrench, 40-200 Nm (30-148 ftlb.)	General service equipment	> V.A.G 1332	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
staking tool	Special tool	> 9772/1	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Electronic torque wrench, 2 -100 Nm (1.5-74 ftlb.)	Special tool	> 9768	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
