Preliminary Work

WARNING: This page is about a different variant/trim than selected.
WARNING: Danger of objects or loads falling down
  • Risk of squashing or crushing

    → Secure components to prevent them from falling down.

  1. Remove cylinder head cover.

    > 158219 REMOVING AND INSTALLING CYLINDER HEAD COVER

  2. Remove spark plugs.

    287020 REMOVING AND INSTALLING SPARK PLUGS

  3. Remove high-pressure pump.

    246319 REMOVING AND INSTALLING HIGH-PRESSURE PUMP

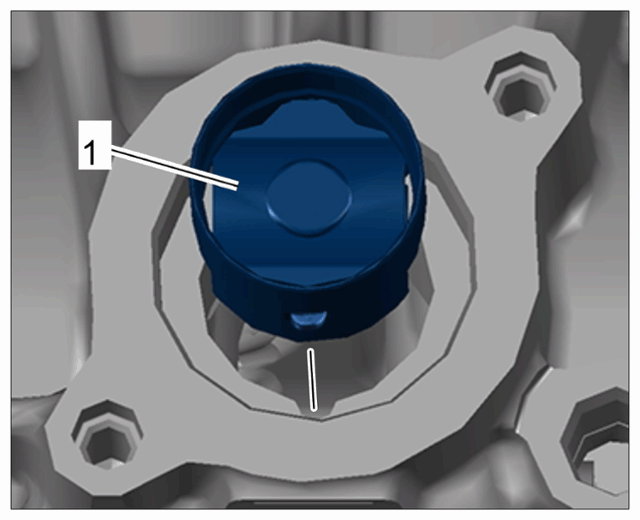

  4. Remove tappets for high-pressure pump -1-  using a magnet.
    G15485655Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Tappets for high-pressure pump
