Component Markings And Distinguishing Features
WARNING: This page is about a different variant/trim than selected.
Information
- The camshaft markings are on a surface next to the dihedron.
- The part number and data matrix code are important (They help when fitting the camshafts).
Markings: Data matrix code on dihedron.

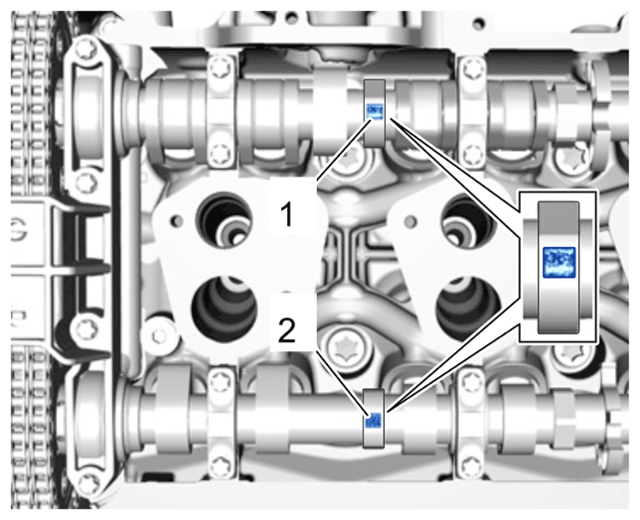

Data matrix code on the camshafts
| 1 | Data matrix code on intake camshaft (at overlapping position) |
| 2 | Data matrix code on outlet camshaft (at overlapping position) |
Part numbers on camshafts:
Intake side:

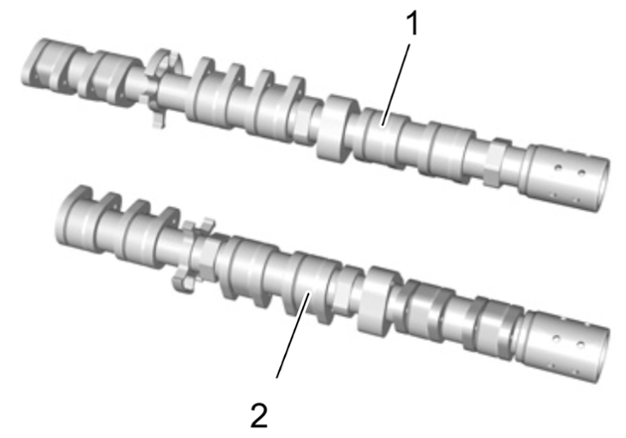

Intake camshafts
| 1 | Intake camshaft on bank 1-3, marking: 9A2.105.504.01 |
| 2 | Intake camshaft on bank 4-6, marking: 9A2.105.514.01 |
Outlet side:

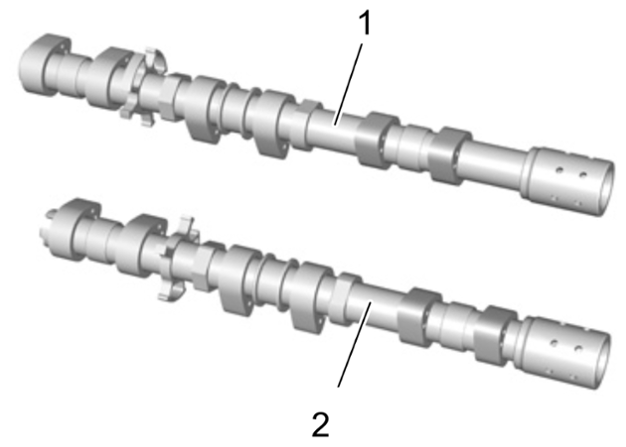

Outlet camshafts
| 1 | Outlet camshaft on bank 1-3, marking: 9A2.105.524.01 |
| 2 | Outlet camshaft on bank 4-6, marking: 9A2.105.534.01 |
Camshaft mount:
- Bearing saddle: Matching number for cylinder head, upper and lower part on the front (chain box side)
- Bearing cover: Matching number for cylinder head and allocation to intake and outlet side of cylinder (e.g. A1 for outlet cylinder 1)
Camshaft controllers:
The camshaft controllers for intake and outlet camshafts are different.
The central screws are identical.

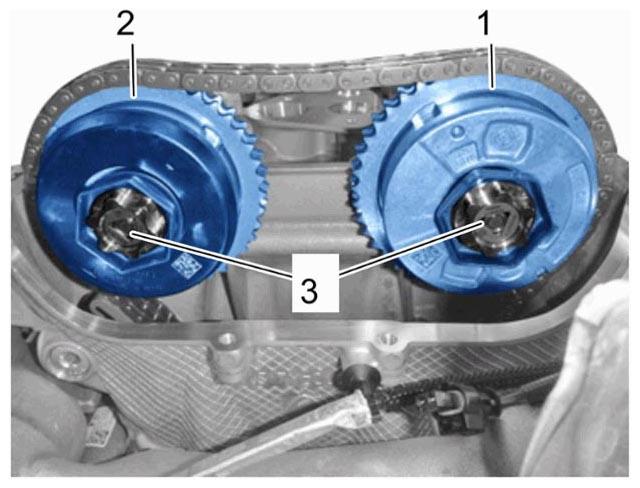

Installation overview of central screws for camshaft controllers
| 1 | Intake camshaft controller (aluminum surface) |
| 2 | Outlet camshaft controller (black) |
| 3 | Central screws (central valves) |
