WM, 51731905 Removing And Installing Rear Tunnel Reinforcement: Notes
TECHNICAL VALUES SPECIFICATION
| Location |
Description |
Type |
Basic value |
Tolerance 1 |
Tolerance 2 |
| Rear tunnel reinforcement to floorpan |
Item 2 |
Tightening torque |
40 (30 ft.lb) Nm |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.

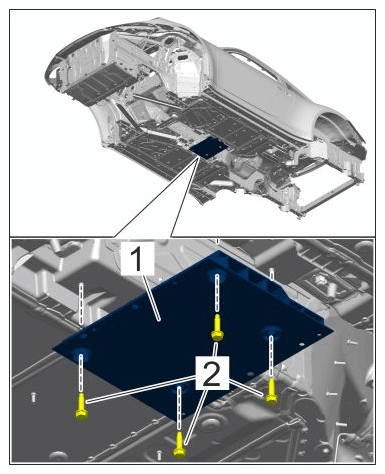

Crash reinforcement in rear tunnel |
|
|
|
|
|
