WM, 516819 Removing And Installing Dashboard Bracket: Notes

TECHNICAL VALUES SPECIFICATION

Location	Description	Type	Basic value
Nuts securing dashboard bracket to A-pillar	Items 3 and 4	Tightening torque	20 (14.7 ft.lb) Nm

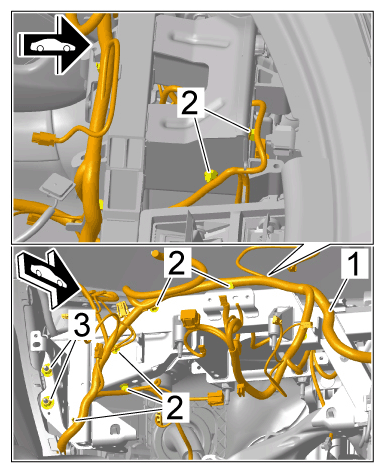

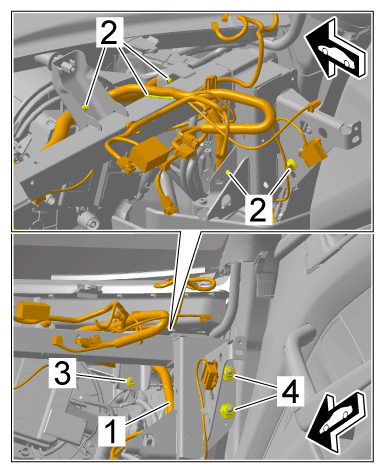

Courtesy of PORSCHE CARS NORTH AMERICA, INC.PORSCHE CARS NORTH AMERICA, INC. Nuts securing dashboard bracket to left A-pillar Courtesy of PORSCHE CARS NORTH AMERICA, INC.PORSCHE CARS NORTH AMERICA, INC. Nuts securing dashboard bracket to right A-pillar

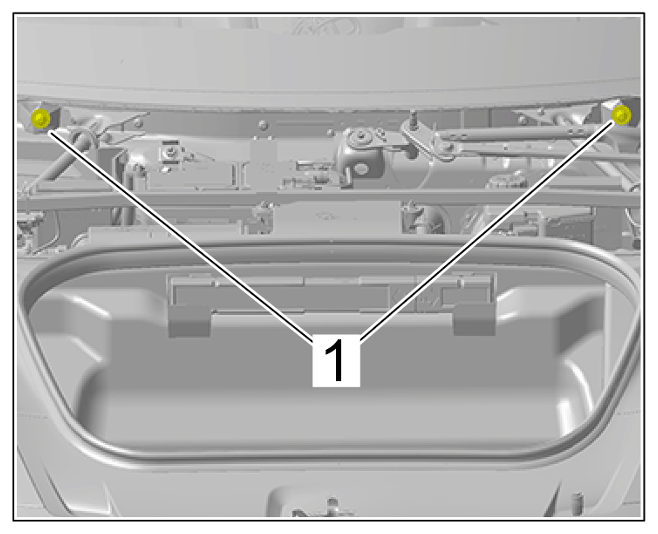

Screws securing dashboard bracket to bulkhead	Item 1	Tightening torque	16 (12 ft.lb) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws

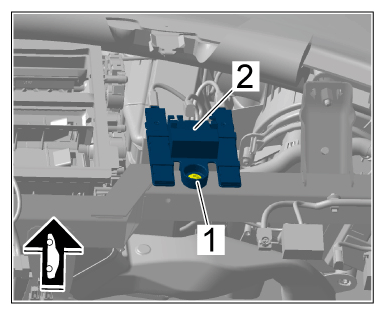

Screws securing PDC buzzer holder to dashboard bracket	Item 2	Tightening torque	3.2 (2.4 ft.lb) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. PDC buzzer holder

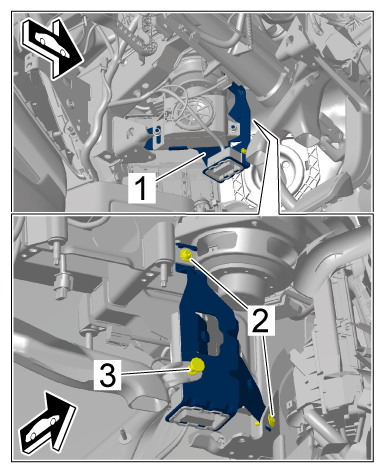

Screw securing antenna holder to dashboard bracket	Item 1	Tightening torque	1.5 (1 ft.lb) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Antenna holder

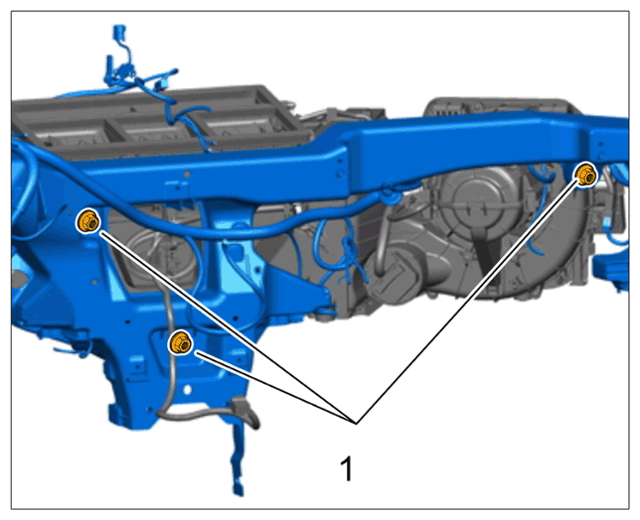

Nut securing heating/fresh-air unit to dashboard bracket	Item 1, M6 screw	Tightening torque	8 (6 ft.lb) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Heating/fresh-air unit to dashboard bracket
