Removing Actuator For Camshaft Control

WARNING: This page is about a different variant/trim than selected.
  1. Remove actuator for camshaft control -3-  .
    1. 1.1 Release and disconnect electric plug connection -1-  .
    2. 1.2 Unscrew fastening screws -2-  .
    3. 1.3 Remove actuator for camshaft control -3-  .

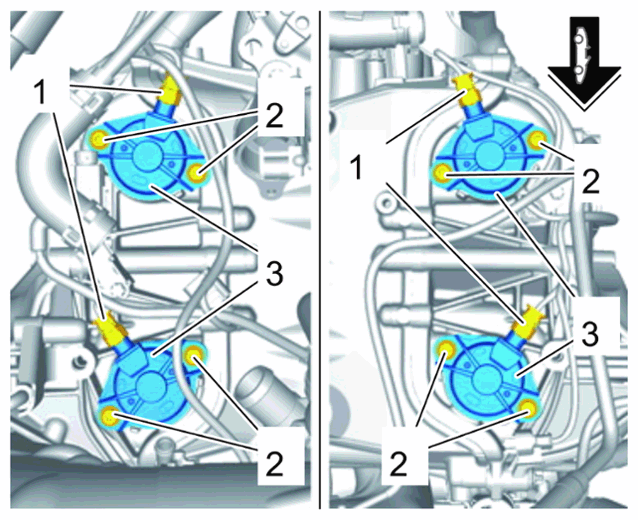

    G14944033Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Actuator for camshaft control
