Preliminary Work

WARNING: This page is about a different variant/trim than selected.

Remove the engine.
> 100119 REMOVING AND INSTALLING ENGINE .
Remove the cylinder head cover.
> 158219 REMOVING AND INSTALLING CYLINDER HEAD COVER .
Side 3-4 only:
1. 3.1 Remove high-pressure pump.
  > 246319 REMOVING AND INSTALLING HIGH-PRESSURE PUMP .

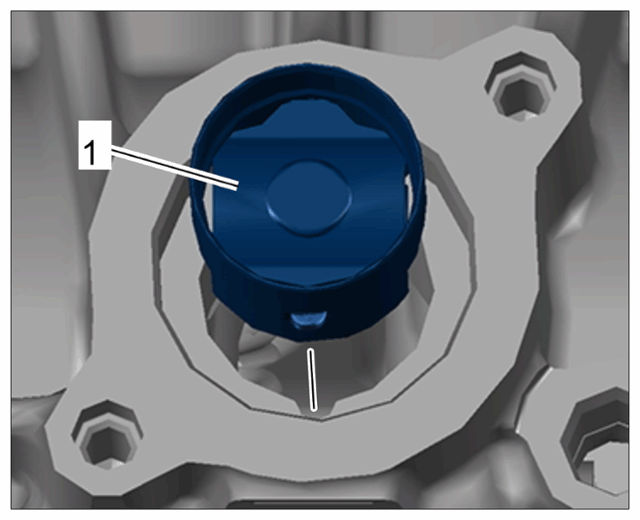

2. 3.2 Remove tappets for the high-pressure pump -1- using a magnet.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tappets for high-pressure pump
Remove vibration damper.
> 137519 REMOVING AND INSTALLING VIBRATION DAMPER (2.0 L) .

> 137519 REMOVING AND INSTALLING VIBRATION DAMPER (2.5 L) .
