Assembling Engine
NOTIFICATION
Dirt and contamination
- Risk of damage to units or components
- → Protect components from dirt and contamination.
- → Clean or replace dirty components.
Information
- Get another person to help you fit crankcase halves 1-2.
Information
- Check guide and tensioning rails for visible and obvious signs of wear before installation and replace if damaged.
Information
- Always replace seals and O-rings.
- Coat all O-rings and sealing surfaces with a light coating of Vaseline to prevent damage to the O-rings.
- Lubricate all bearing locations with a light coating of engine oil (unless a different procedure is specified).
Information
- Some of the illustrations show the 6-cylinder engine variant as an example.
- But this does not affect the procedure or the steps to be carried out.
Information
- The tightening torques for the engine are listed in the following documents and must be used in accordance with these specifications.
Technical values and tightening torques:
Repair group 1:
> 1X00IN TECHNICAL VALUES - GROUP 1
.
Repair group 2:
> 2X00IN TECHNICAL VALUES - GROUP 2 .
Overview of bearing shell allocation:
Allocation of crankshaft bearing shells
- Main bearing shells - red, yellow, blue
- Partial-groove bearing shells - red, yellow, blue
- Thrust washers
- Supporting mount shells - red, yellow, blue
- Fit crankcase half 3-4 on the engine assembly support.
- 1.1 Use > 9590 - mounting parts
to secure to the > 9771 - engine adapter
.
1001IN TOOLS FOR REMOVING/INSTALLING UNITS AND WORKING ON ASSEMBLY SUPPORT .
Information
- The bearing shells must be allocated according to specifications.
- Observe difference between partial-groove bearings and smooth bearings.
- Grease bearing shells with Optimol Optipit lubricant (Part No. 000.043.305.56), or use new engine oil.
- The "thinner" bearing shells must always be inserted into the crankcase half for cylinders 4-6.
- Red bearing shell = thin; yellow bearing shell = medium; blue bearing shell = thick
- 1.1 Use > 9590 - mounting parts
to secure to the > 9771 - engine adapter
.
- If the allocation of the bearing shell pairs (main and support bearings) is based on the markings, the following general rule applies:
- The thinner bearing shell must always be inserted into crankcase half 3-4!
- Fit new bearing shells on crankcase half 3-4. The following markings ensure correct allocation.
- 3.1 Crankcase half 3-4 : Markings are on the crankshaft. The upper series of letters -1- is for the crankcase. Allocation starts at the support bearing -SL- on the belt side and is read from left to right. The support bearing does not have a number, while the main bearings are numbered -HL 1 bis 5- (number 5 is at the flywheel side).

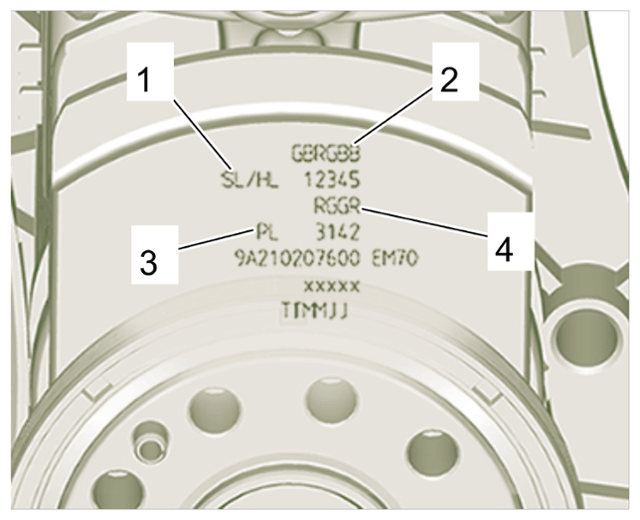

Marking for bearing shell allocation on the crankshaft

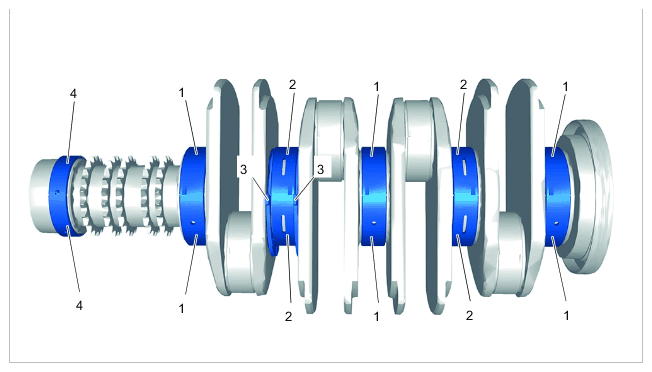

- Position of support and main bearing shells on crankshaft (support bearings not numbered!)
- Series of letters on support and main bearing shells
- Position of connecting-rod bearing shells
- Series of letters on connecting-rod bearing shells
SL Supporting mount
HL Main bearing
PL Connecting-rod bearing
R Red bearing shell ("thin")
G Yellow bearing shell ("medium")
B Blue bearing shell ("thick")
- Fit new bearing shells on crankcase half 1-2.
Always observe specification (Step 2)!

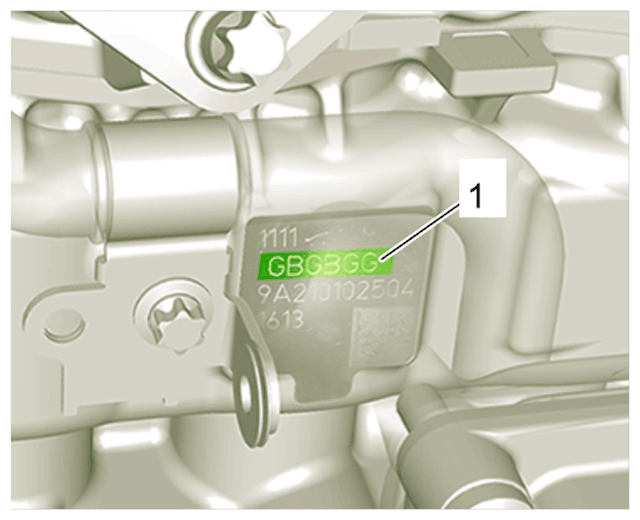

- 4.1 Crankcase 1-2: Markings -1- on crankcase half. The series of letters is read from left to right. Allocation starts at the flywheel side and ends at the supporting mount on the belt side.
- 4.2 Fit and grease new O-ring on the crankcase sealing face.
Marking for bearing shell allocation on crankcase half 1-2
- Bearings fitted in bearing seat on crankcase half 1-2
R Red bearing shell ("thin")
G Yellow bearing shell ("medium")
B Blue bearing shell ("thick")

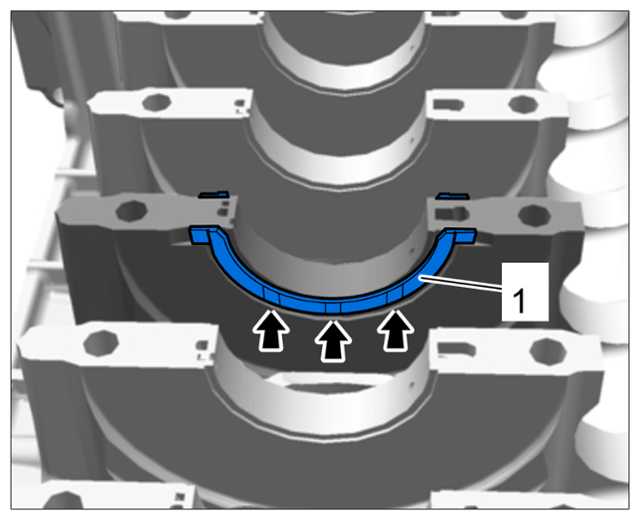

- Insert two thrust washers -1-
on main bearing 2. Oil grooves must always be facing outwards.
Position of grooves on thrust washer
- Install tensioning rail for oil-pump drive chain in crankcase 3-4.

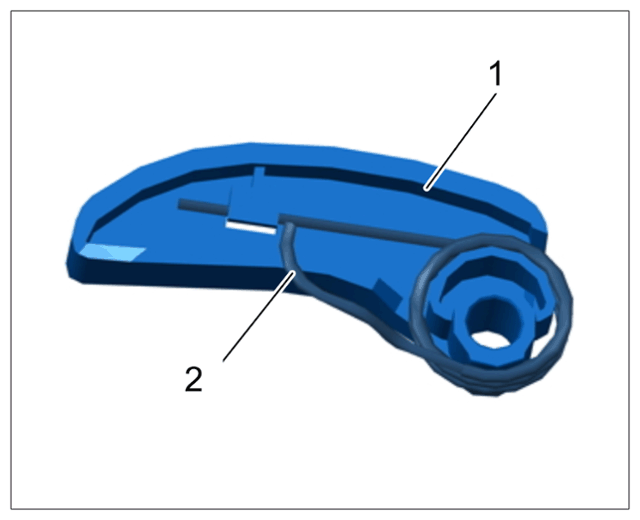

Tensioning rail for oil-pump timing chain
- Rail
- Tensioning spring

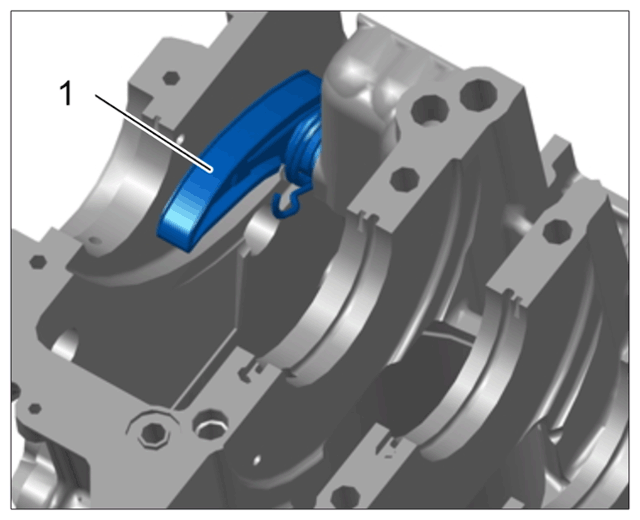

- 6.1 Fit tensioning rail -1- for oil pump chain using a short bearing pin.
Tensioning rail for oil-pump drive in crankcase
- Fit guide rail for cylinder bank 3-4 and secure in the crankcase using a short bearing pin.

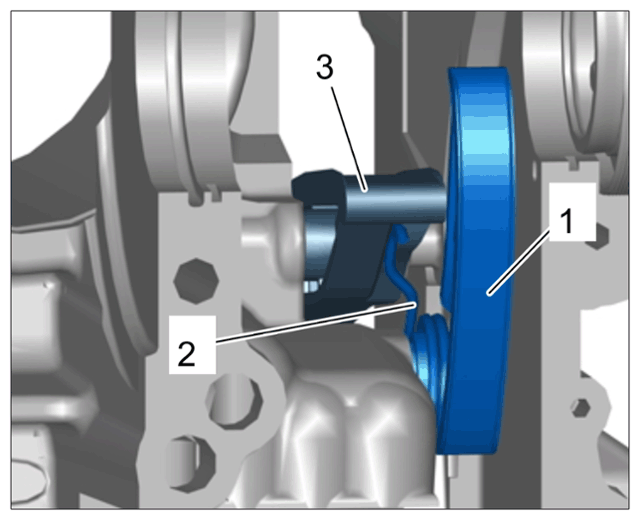

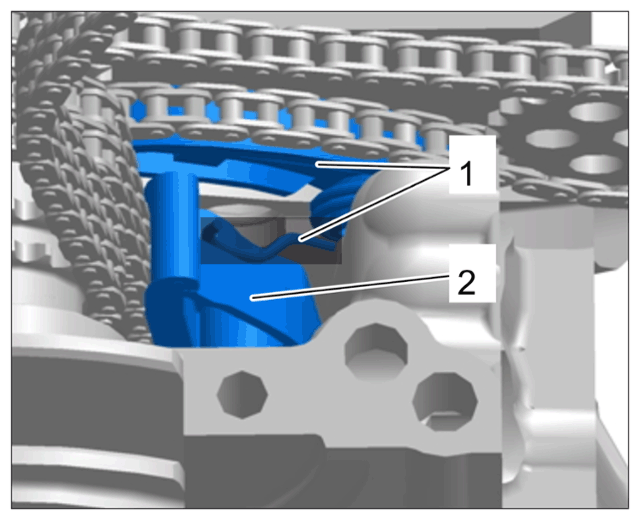

- 7.1 Place spring -2- on tensioning rail -1- for oil-pump drive chain into the cut-out in the guide rail -3- .
Position of tensioning spring in guide rail

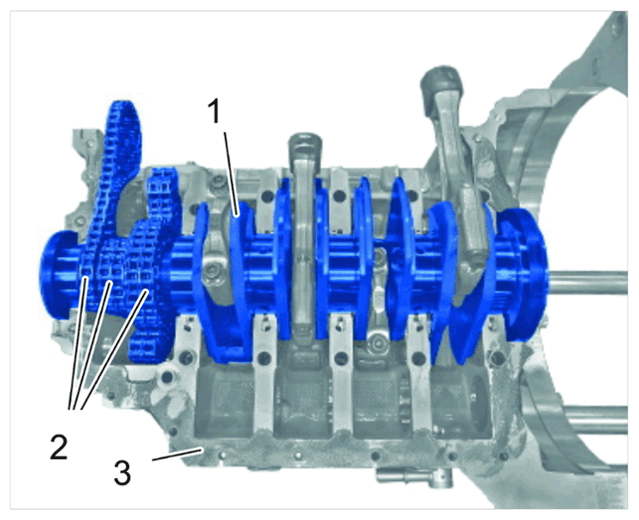

- Insert crankshaft -1-
with timing chains -2-
.
- 8.1 Engage oil pump gear in the drive chain.
Crankshaft and timing chains in crankcase half 3-4

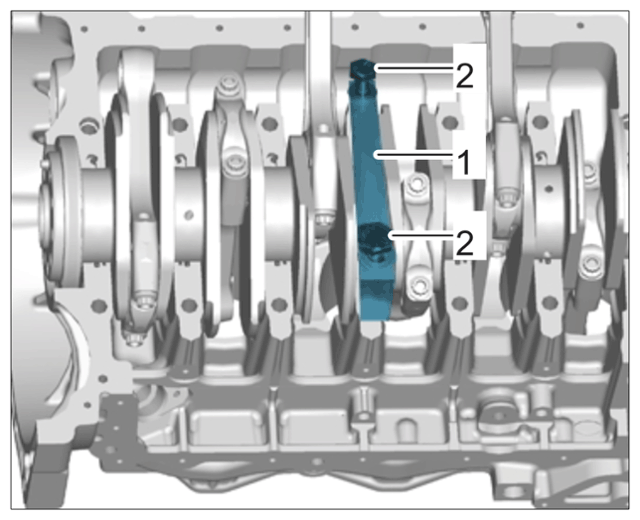

- Fix crankshaft in place using special tool > 9779 - holding bridge-1-
.
- 9.1 Fit and tighten fastening screws -2- hand-tight.
Holding bridge 9779 for crankshaft (shown on 6-cylinder engine)
- Install pistons on cylinder bank 3-4 and connecting rods 1-2.
> 131020 REMOVING AND INSTALLING PISTONS - portion on "Installing".
- Have new through bolts with sealing washers ready.
Information
- The sealing faces of the crankcase halves must be completely free of oil, grease and burrs before applying sealant.
- Apply a bead of sealant with a diameter of no more than 1 mm. Always apply sealant to the required area only.
- Join the crankcase halves within max. 5 minutes of applying the bead of sealant.

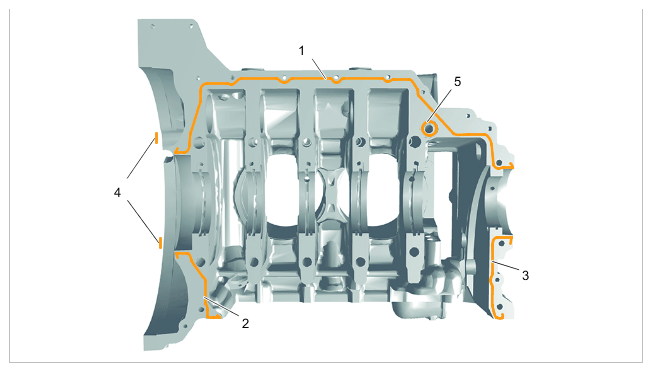

- Apply sealant to crankcase half 3-4. Observe processing instructions.
- 12.1 Use sealant listed in Spare Parts Catalogue (Part No. 000.043.207.31).
- 12.2 Carefully apply a continuous bead of sealant -1 to 3- with a diameter of 1 mm. Follow sealant contour as shown in illustration.
- 12.3 Remove residual silicone in the crankshaft flange area -4- following installation.
- 12.4 Fit new sealing ring -5- .
Applying sealant on crankcase half 3-4
- Fit rubber sleeves on connecting rods 1-2 (> 9795 - assembly aid ) and position vertically.
- With the help of a second person, place crankcase half 1-2 on crankcase half 3-4.

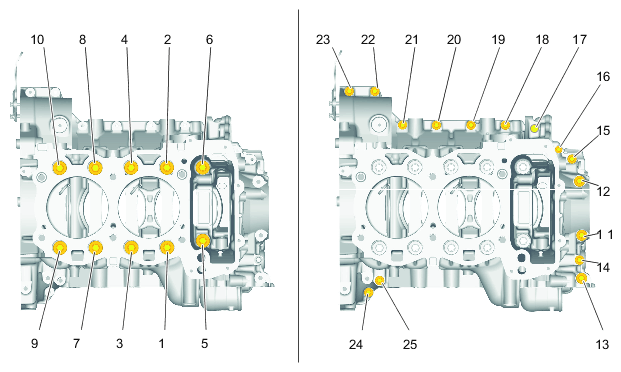

- Fit through bolts -1 to 10-
and tighten according to the specified tightening torque and sequence.
Tightening sequence for crankcase
- Fit external Torx screws -11 to 25- for the outer cross bolt connection and tighten according to the specified tightening sequence.
- Fit and tighten > 9590 - mounting parts for bolting crankcase half 1-2 to the top of the engine support.
- Install pistons for cylinder bank 1-2.
> 131020 REMOVING AND INSTALLING PISTONS - portion on "Installing".
- Turn the crankshaft clockwise a number of times at the vibration damper using > 9773 - turning device
in order to check for smooth operation and correct function.
- 19.1 Then, turn the crankshaft so that none of the pistons are at top dead centre (TDC).
- Fit crankshaft sealing rings at the flywheel and belt side.
> 137455 REPLACING CRANKSHAFT SEALING RING - BELT SIDE .
> 135955 REPLACING CRANKSHAFT SEALING RING - FLYWHEEL SIDE .

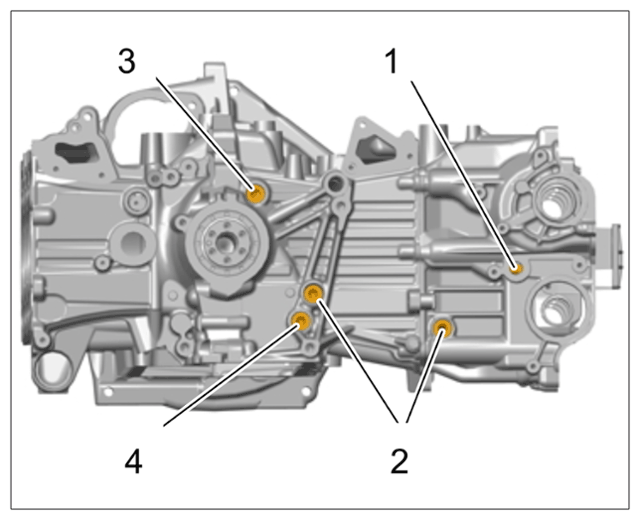

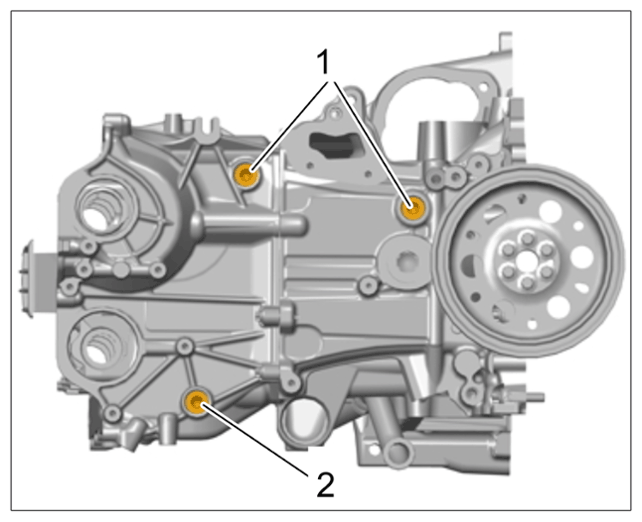

- Fit tensioning rail for cylinder bank 3-4 using a long bearing pin -3-
.
Bearing pins for bank 3-4 (shown on 6-cylinder engine)
- Install oil windage tray.
- Install upper part of oil pan.
> 175019 REMOVING AND INSTALLING OIL PAN (UPPER PART) - portion on "Installing".
- Install oil pump.
> 172019 REMOVING AND INSTALLING OIL PUMP - portion on "Installing".
- Install coolant pipe for coolant pump.
- 25.1 Fit and tighten external Torx screws.
- Insert displacement bodies on cylinder bank 1-2.
Information
- Always guide timing chains with your hand when turning the crankshaft.
- Fit cylinder head 1--2 and 3-
-4.
> 157019 REMOVING AND INSTALLING CYLINDER HEAD - portion on "Installing".

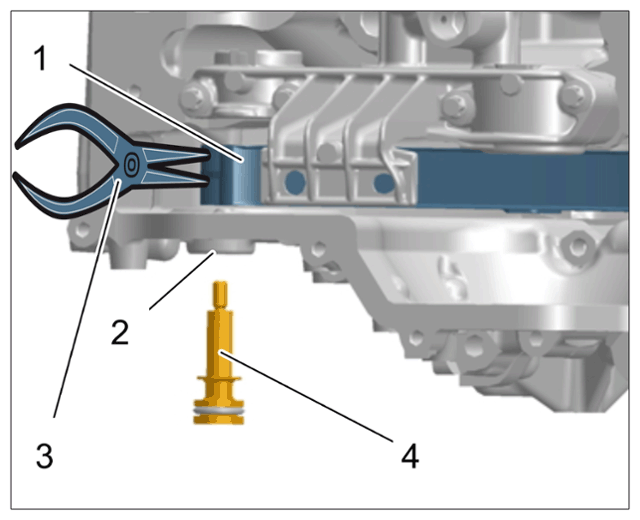

- Hold tensioning rail -1-
for cylinders 1-2 using a pair of flat-nosed pliers -3-
and screw in bearing pin -4-
.
Fitting tensioning rail and guide rail
- 28.1 Secure guide rail for cylinders 3-4 in the cylinder head with a short bearing pin.
- 28.2 Tighten both bearing pins to the specified torque: 10 Nm (7.5 ftlb.) .
- Check installation position of tensioning rail for oil-pump drive chain and guide rail again.
Tensioning rail for oil-pump drive chain and guide rail
- Tensioning spring for tensioning rail
- Guide rail
- Install lower part of oil pan.
> 175019 REMOVING AND INSTALLING OIL PAN (LOWER PART) - portion on "Installing".
- Install camshafts.
> 150520 REMOVING AND INSTALLING CAMSHAFTS (INCLUDES SETTING TIMING) .
- Install cylinder head cover.
> 158219 REMOVING AND INSTALLING CYLINDER HEAD COVER - portion on "Installing".
- Install vacuum pump for brake booster.
> 477619 REMOVING AND INSTALLING VACUUM PUMP - portion on "Installing".
- Fit vacuum line (vacuum pump).
- Fit cover for positive crankcase ventilation.

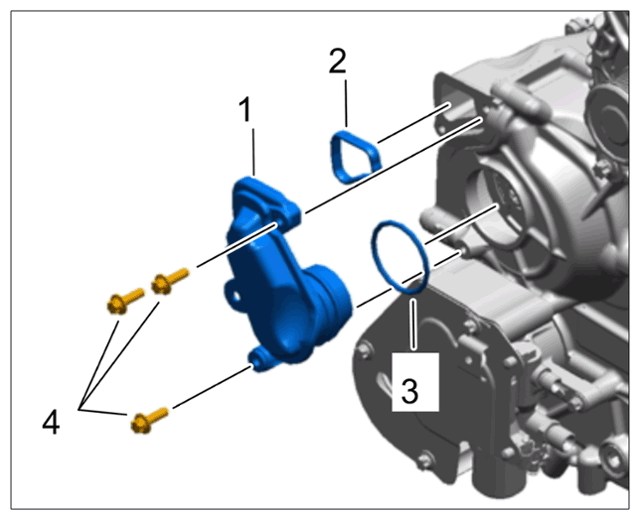

- 35.1 Fit cover for cylinder bank 1-3 -1-
with new gaskets -2 and 3-
and secure with external Torx screws -4-
.
Positive crankcase ventilation cover 1-3

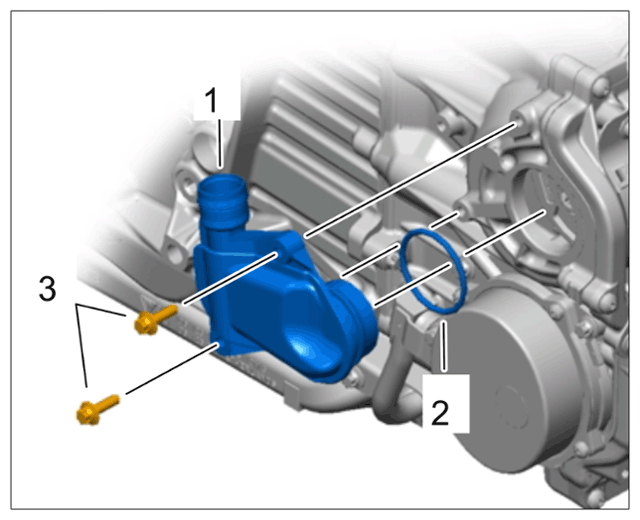

- 35.2 Fit cover for cylinder bank 4-6 -1- with a new O-ring -2- and secure with external Torx screws -3- .
Positive crankcase ventilation cover 4-6
- 35.1 Fit cover for cylinder bank 1-3 -1-
with new gaskets -2 and 3-
and secure with external Torx screws -4-
.
- Fit spark plugs.
> 287020 REMOVING AND INSTALLING SPARK PLUGS - portion on "Installing".
- Install ignition coils.
> 282020 REMOVING AND INSTALLING IGNITION COILS - portion on "Installing".
