Removing Pulse Sender
WARNING: This page is about a different variant/trim than selected.

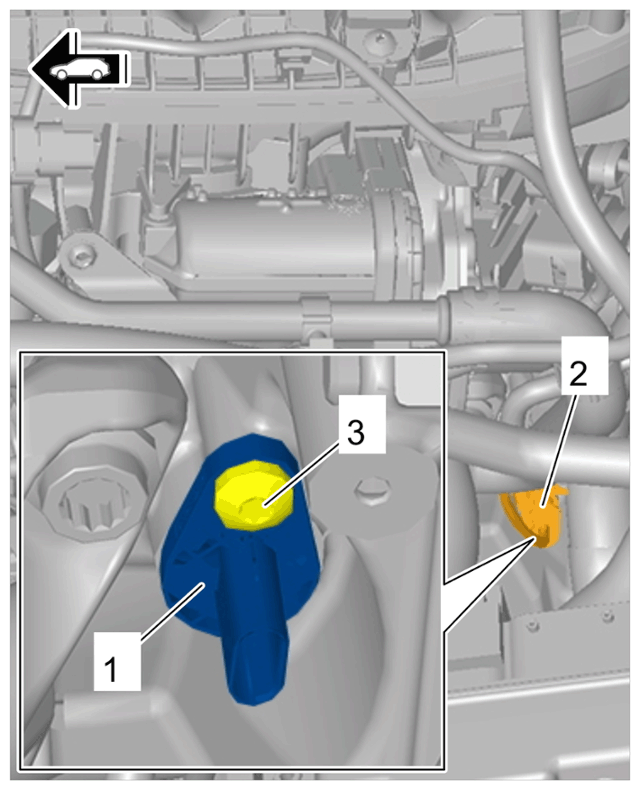

- Remove pulse sender -1-
.
- 1.1
Release and disconnect electric plug connection for pulse sender -2-
.
- 1.2
Unscrew screw on pulse sender -3-
.
- 1.3
Pull off pulse sender -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Pulse sender
