Remove Camshaft Sensor (Outlet Camshaft)
WARNING: This page is about a different variant/trim than selected.
- Remove camshaft sensor for outlet camshaft -1-
.
- 1.1
Release and disconnect electric plug connection -2-
.
- 1.2
Unscrew screw -3-
and pull out camshaft sensor for outlet camshaft -1-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

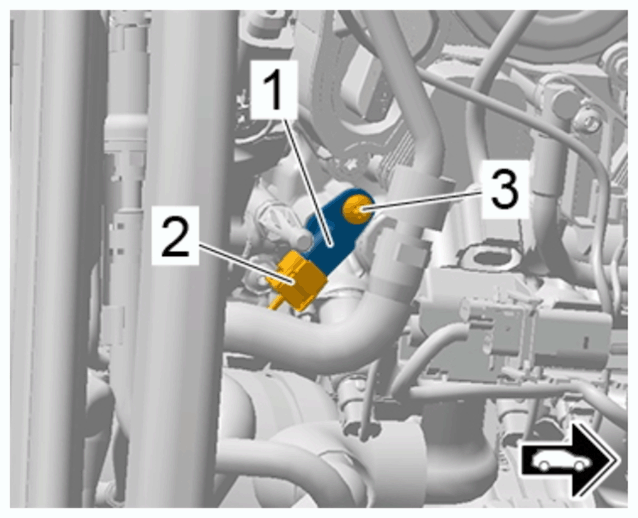

Camshaft sensor for outlet camshaft
