Lubrication Area For Rubber Sleeve On Ignition Coil

WARNING: This page is about a different variant/trim than selected.

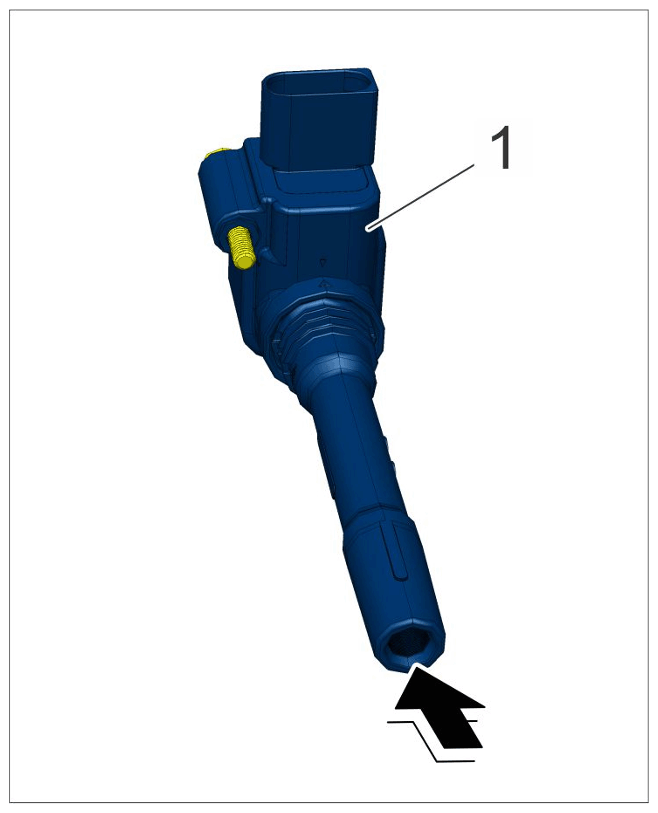

G15151204Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Applying lubricant to ignition coil

  1. Apply lubricant to the rubber sleeve on the ignition coil all the way around -arrow-  with a thickness of 1 to 2 mm.
