Removing Ignition Coils

WARNING: This page is about a different variant/trim than selected.
  1. Release and disconnect electric plug connection -2-  .

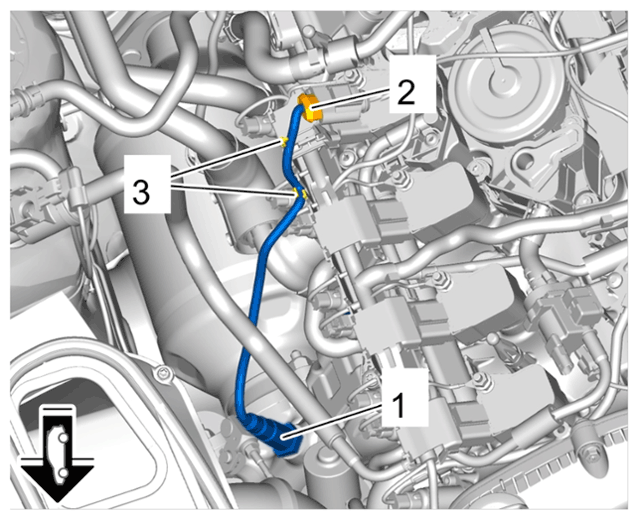

    G15151202Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Oxygen sensor upstream of catalytic converter

  2. Remove ignition coils -1-  .
    1. 2.1  Disconnect electric plug connection -2-  from cable guide -3-  .
    2. 2.2  Open cable guides -3 and 4-  .
    3. 2.3  Release and disconnect electric plug connections -5-  .
    4. 2.4  Unscrew nuts on ground lines for ignition coil -6-  and remove ground lines.
    5. 2.5  Unscrew screws on ignition coil -7-  .
    6. 2.6  > T10530 - Puller  must be inserted into the bore on the first ignition coil
    7. 2.7  Turn knurled nut on > T10530 - puller  clockwise until > T10530 - puller  is attached securely.
    8. 2.8  Carefully pull the first ignition coil -1-  straight up and off.
    9. 2.9  > T10530 - Puller  can now be removed. Then, do the same for the next ignition coil -1-  and continue until you have removed all ignition coils -1-  .

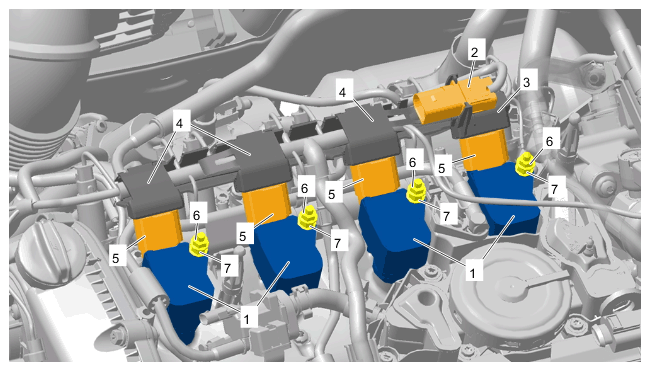

G15151203Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Ignition coils
