Removing Ignition Starter Switch

1. Remove trim panel -1-  on main headlight switch and ignition starter switch.
   1. 1.1  Release and disconnect electric plug connection -2-  for ignition starter switch light.
   2. 1.2  Unclip locking lugs -arrows a-  and remove trim panel.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

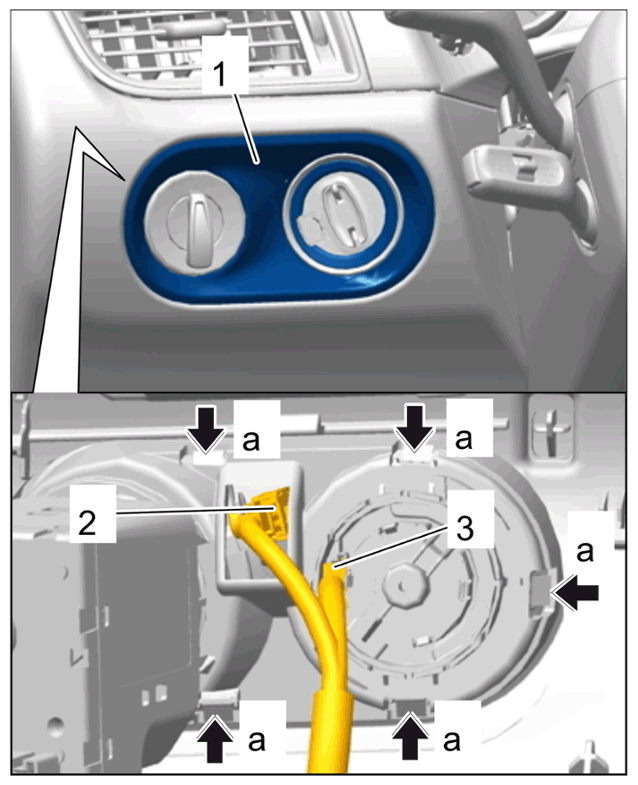

   Trim panel on main headlight switch and ignition starter switch

2. Remove ignition starter switch.
   1. 2.1  Loosen and unscrew union nut -1-  using > 9800 - wrench  .
   2. 2.2  Remove ignition starter switches from trim panel under dashboard at the left.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

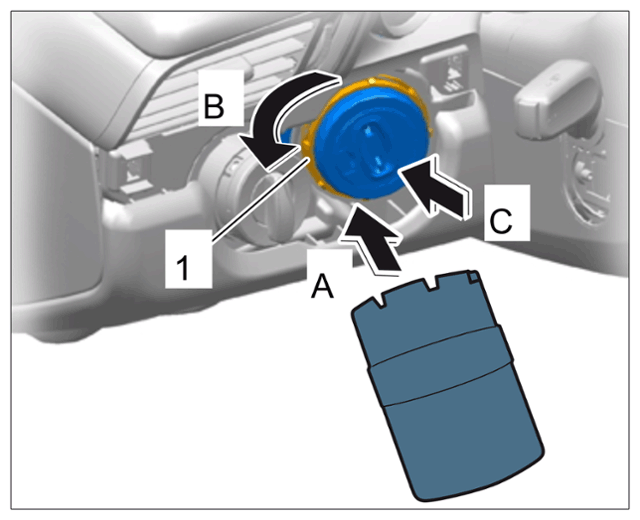

   Union nut (shown on the 991)

3. Release electric plug connection -arrow a-  and disconnect it -Arrow-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

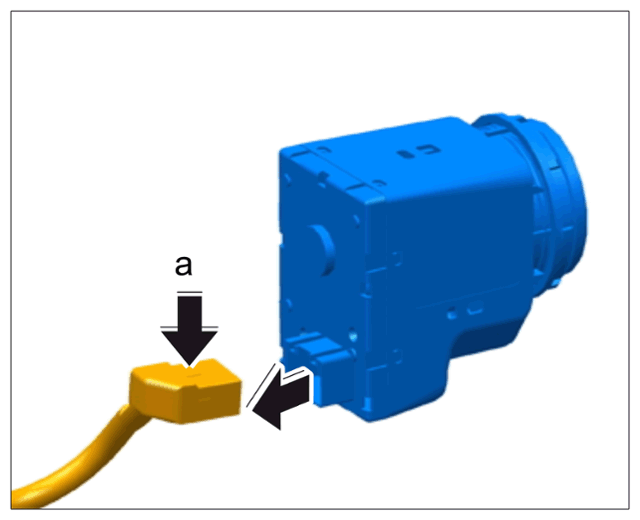

Electric plug connection
