Subsequent Work

  1. Install front brake disc.

    For PCCB,

    > 465119 Removing and installing front PCCB brake disc - section on  "INSTALLING ".

    For steel brakes,

    > 465019 Removing and installing front brake disc - section on  "INSTALLING ".

    WARNING: Incorrect handling of safety bolts
    • Danger of injury
    • Loss of torque

      → Always use new screws or nuts following removal.

      → Comply with instructions for repairs.

      → Observe specified tightening torques.

      → Carry out a visual inspection of parts used.

  2. Tighten new hexagon nut -1-  using > 9471 - socket wrench  . Another person is needed in order to actuate the service brake.

    > Tightening torque 460 N.m

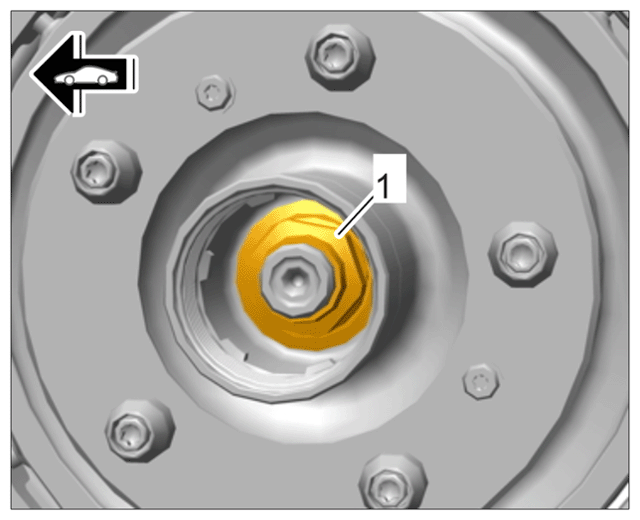

    G16222082Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Hexagon nut for wheel hub at tension bolt (example)

  3. Fit front wheel.

    > 440519 Removing and installing wheel - section on  "INSTALLING ".
