Installing Wheel

  1. If heavily soiled, clean wheel bolts and spherical caps -1 and 2-  with a lint-free cloth.
    G16222255Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cleaning wheel bolt

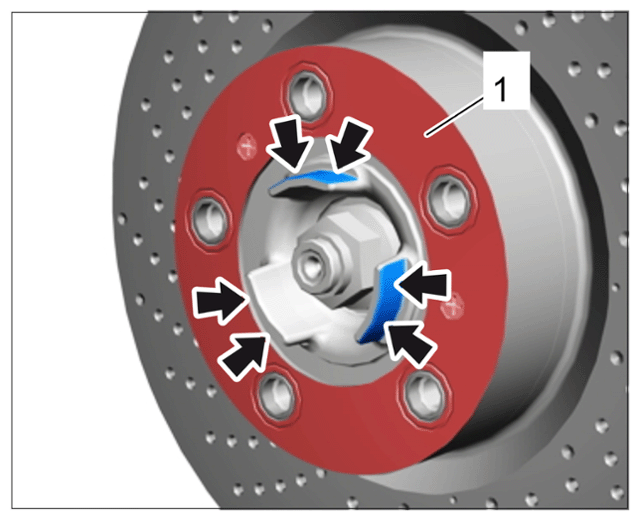

  2. Clean contact surface -1-  on the wheel hub and brake disc if necessary.

    Grease wheel centering surface on the wheel hub -arrows-  with a very light coating of Optimally TA (aluminum paste).

    The contact surface on the brake disc -1-  and on the wheel must not be greased.

    G16222256Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Greasing wheel centering surface

  3. Fit wheel.
  1. 3.1 On vehicles with PCCB (I-no. 450)

    Screw assembly aids -1-  into two threaded holes that are not next to each other.

  2. 3.2 Carefully push on the wheel.
  3. 3.3 Screw in wheel bolts or the remaining wheel bolts.
  4. 3.4 On vehicles with PCCB (I-no. 450)

    Replace assembly aids -1-  with wheel bolts.

    G16222257Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Installing assembly aids (threaded bolts for fitting wheel)

  5. 3.5 Fit wheel bolts and tighten uniformly. Start at the top when tightening. > Tightening torque 160 N.m (118 ft lb.)
