Disassembling Front Roof Frame

Information

Some of the repair illustrations show only one side of the vehicle. Naturally, some steps also have to be performed on the opposite side of the vehicle as well. These must be carried out as a mirror image of the steps shown.

1. Remove convertible top lock.

   > 611919 Removing and installing convertible top lock - section on  "REMOVING "

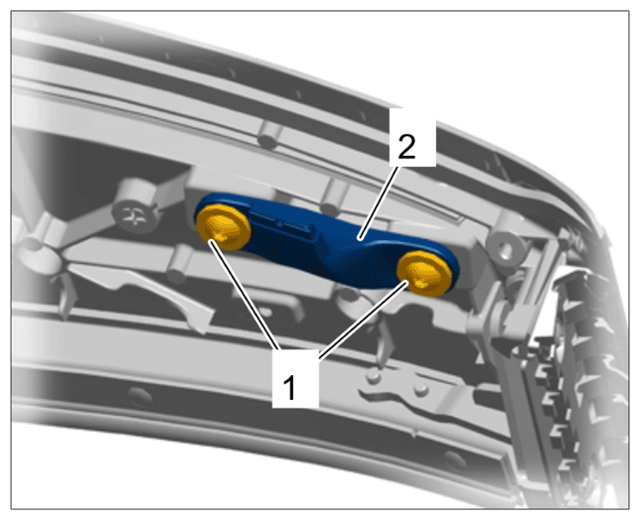

2. Unscrew fastening screws -1-  and remove guides -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Removing guides
