Removing Convertible Top Lock

Information

Before removal, mark installation position on the roof frame with a marking pen -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

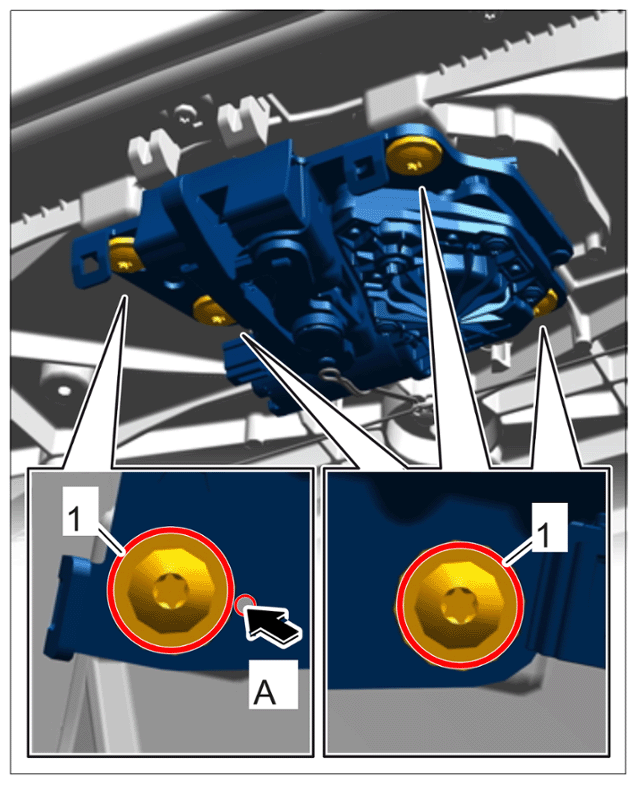

Marking installation position with preload

• New roof frames have a bore for aligning the convertible top lock -arrow A-  .

1. Release plug connection -2-  (-arrow A-  ) and pull it off -arrow B-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

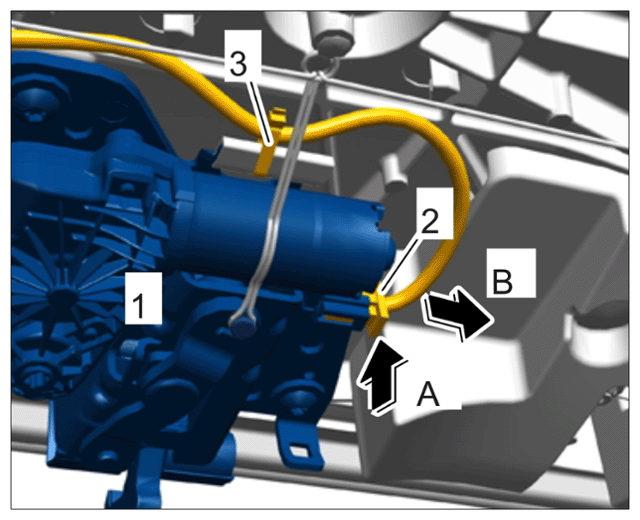

   Releasing and disconnecting electric plug connection (shown on the 991)

2. Loosen convertible top lock -1-  .
   1. 2.1 Unscrew and remove screws -4-  .
   2. 2.2 Carefully remove convertible top lock -1-  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

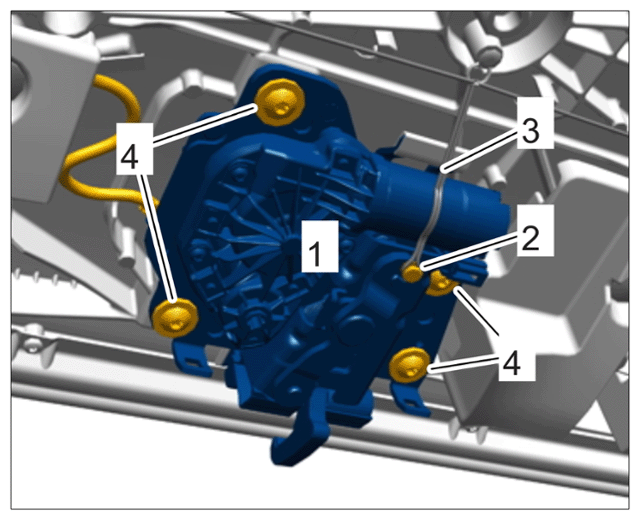

      Loosening convertible top lock (shown on the 991)

   3. 2.3 Release electric plug connection -2-  (-arrow A-  ) and disconnect it -arrow B-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

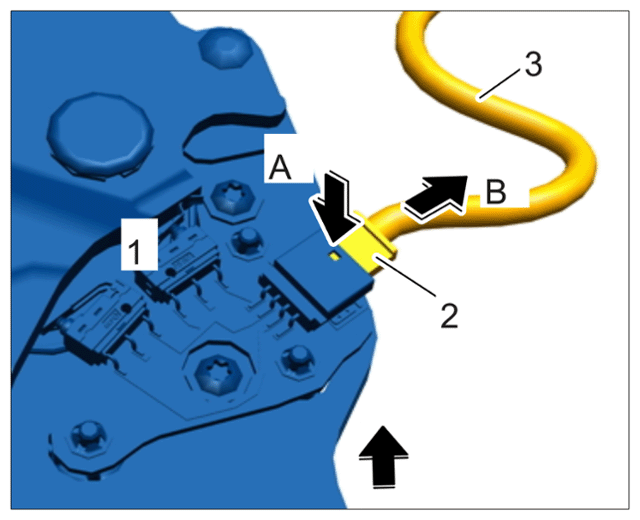

   Releasing and pulling off electric plug connection
