Removing Knock Sensor

WARNING: This page is about a different variant/trim than selected.
CAUTION: Hot components
  • Risk of burns
    1. → Let hot components coo, down.
    2. → Wear personal protective gear.
  1. Remove knock sensor

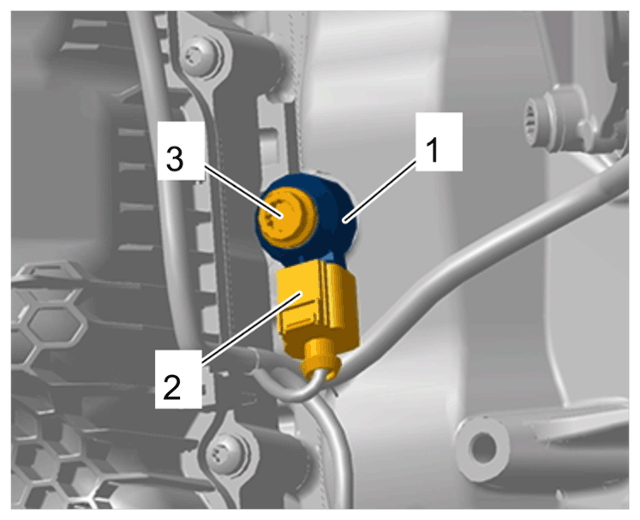

    G15242796Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Knock sensor

    1. 1.1  Release and disconnect electric plug connection for knock sensor -2-  .
    2. 1.2  Unscrew screw on knock sensor -3-  .
    3. 1.3  Remove knock sensor -1-  .
