Subsequent Work

WARNING: This page is about a different variant/trim than selected.

Only for hybrid models for Ignition coils, page 4-6: Secure the coolant reservoir for the low-temperature system.

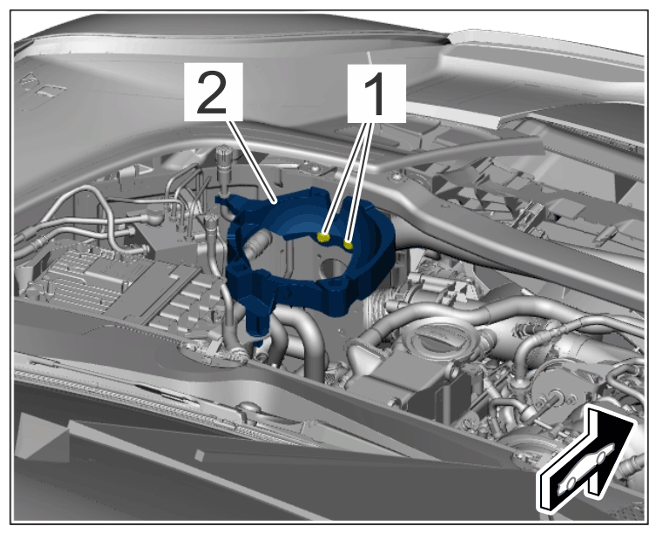

1.1 Install the reservoir holder -2- .

1.1.1 Position holder -2- and fit and tighten screws -1- .

> Tightening torque 8 Nm (6 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Holder for reservoir

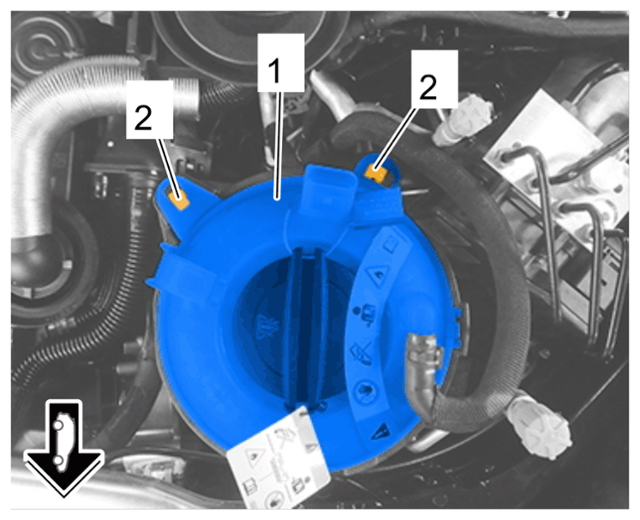

1.1.2 Clip reservoir -1- into the holder.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Reservoir for low-temperature system

Only after removing ignition coils for cylinders 2 and 3:
Install torque support.

> Removing and installing torque support
Install air cleaner housing.
> Removing and installing air cleaner housing
