Removing Ignition Coils For Cylinders 4 To 6

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

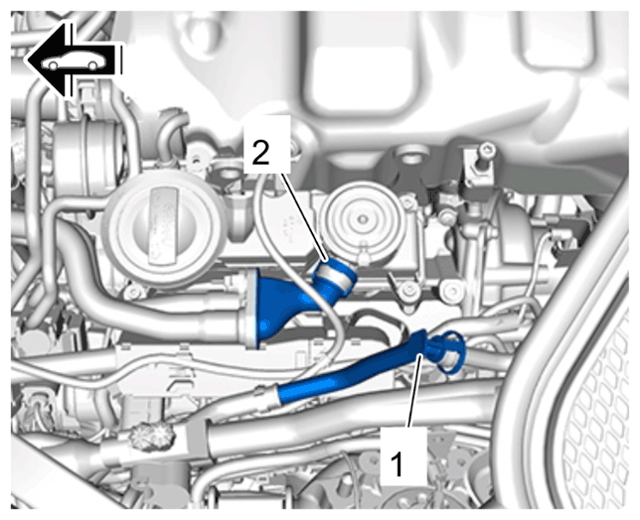

Vent line and vacuum line on left cylinder bank

1. 1.1  Release and disconnect vent line -2-  at the connection and move it aside.
2. 1.2  Release and disconnect vacuum line -1-  at the connection point and move it aside.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

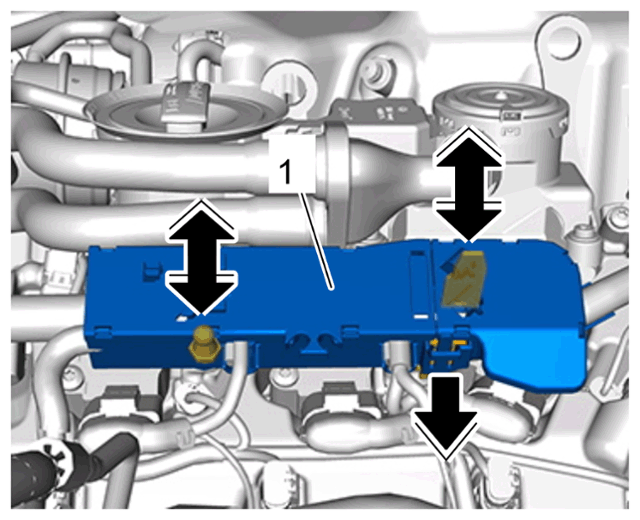

Cable duct on left cylinder bank

1. 2.1  Release retaining clip -bottom right arrow-  and pull cable duct up out of the guide -top right arrow-  .
2. 2.2  Pull cable duct -1-  off ball pins -left arrow-  .
3. 2.3  Move cable duct -1-  aside so that the ignition coils are accessible.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

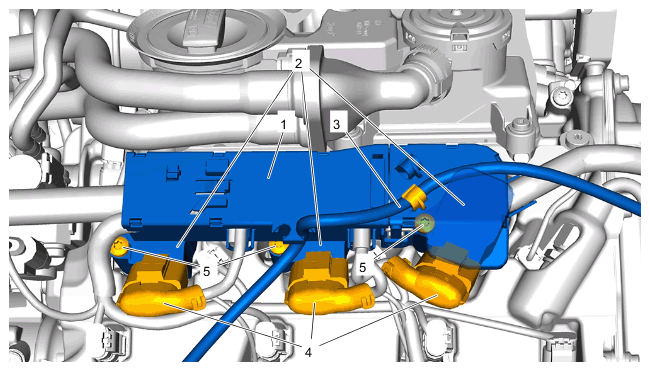

Overview of left cylinder bank

1. 3.1  Release and disconnect electric plug connection for ignition coil -4-  for the relevant cylinder.
2. 3.2  Unscrew screw on ignition coil -5-  for the relevant cylinder.
3. 3.3  Pull off ignition coil -2-  for the relevant cylinder.
