Removing Ignition Coils For Cylinders 1 To 3

WARNING: This page is about a different variant/trim than selected.

Only when removing ignition coil for cylinder 1:
Remove ignition coil -1- for cylinder 1.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Overview of right cylinder bank
1. 1.1 Release and disconnect electric plug connection for ignition coil -4- for cylinder 1.
2. 1.2 Unscrew screw on ignition coil -5- for cylinder 1.
3. 1.3 Pull off ignition coil -1- for cylinder 1.
Only when removing ignition coil for cylinders 2 and 3:
Expose cable duct.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

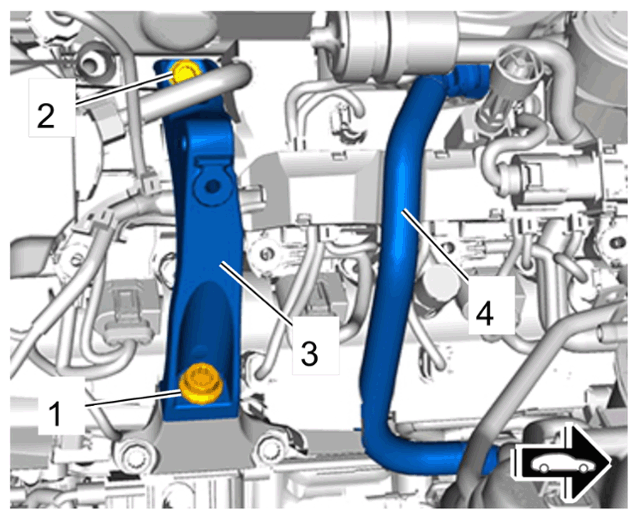

Torque support bracket (shown on V8 biturbo)
1. 2.1 Unscrew screws -1 and 2- and remove bracket for torque support -3- .
Only when removing ignition coil for cylinders 2 and 3:
Loosen cable duct -3- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

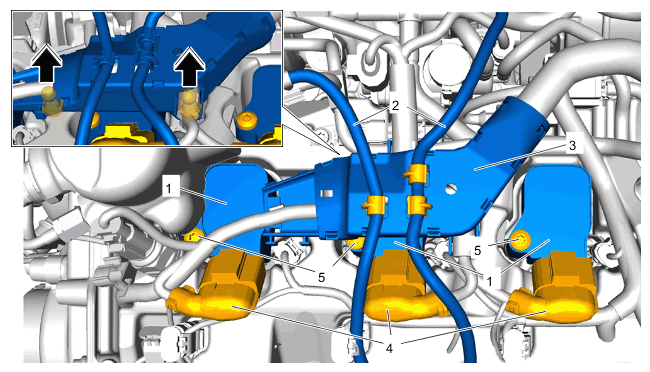

Overview of right cylinder bank
1. 3.1 Loosen oxygen sensor lines -2- from cable duct -3- .
2. 3.2 Pull cable duct -3- off ball studs -Arrows- .
Remove ignition coil -1- for the relevant cylinder.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Overview of right cylinder bank
1. 4.1 Release and disconnect electric plug connection -4- for the relevant cylinder.
2. 4.2 Unscrew screw on ignition coil -5- for the relevant cylinder.
3. 4.3 Pull off ignition coil -1- for the relevant cylinder.
