Installing Ignition Coils For Cylinders 4 To 6

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

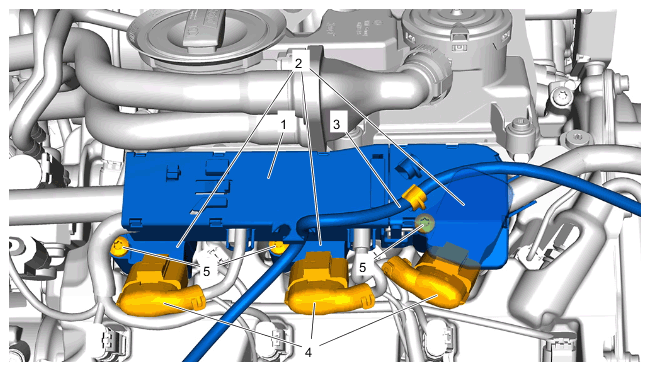

Overview of left cylinder bank

1. 1.1  Insert ignition coil -2-  for the relevant cylinder and make sure it is seated correctly.
2. 1.2  Connect and lock electric plug connection for ignition coil -4-  for the relevant cylinder.
3. 1.3  Fit and tighten screw on ignition coil -5-  for the relevant cylinder.

   > Tightening torque 9 Nm (6.5 ftlb.) (6.6 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

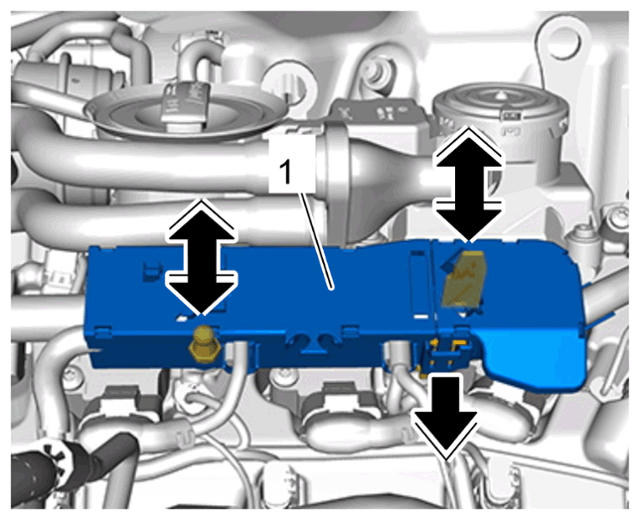

Cable duct on left cylinder bank

1. 2.1  Press cable duct -1-  onto ball pins -left arrow-  and insert guide into the bar. The guide must engage with an audible click on the bar.
2. 2.2  Check that cable duct -1-  is fitted securely.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

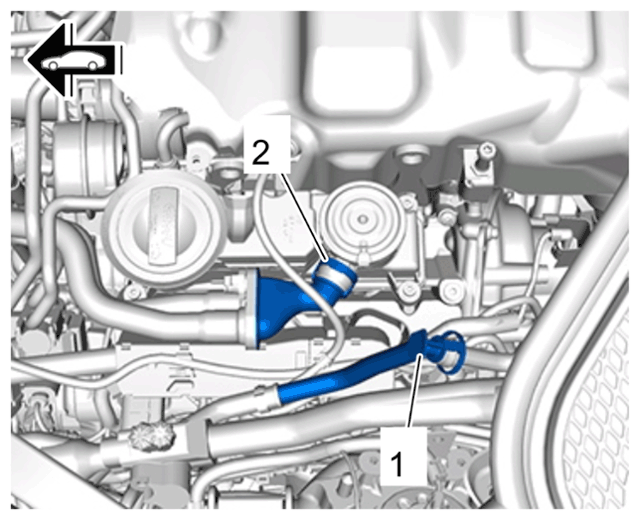

Vent line and vacuum line on left cylinder bank
