Subsequent Work

WARNING: This page is about a different variant/trim than selected.
  1. Bleed the brake system.

    > 470107 BLEEDING THE BRAKE SYSTEM

  2. Check brake fluid level and correct it if necessary

    > 470801 CHECKING BRAKE FLUID LEVEL

    NOTIFICATION

    Removing/fitting wheels

    • Risk of damage to (ceramic) brake discs

      → Carefully guide the wheel towards the wheel hub, thereby preventing any heavy impact on the (ceramic) brake disc.

  3. Install wheel.

    > 440519 REMOVING AND INSTALLING WHEEL

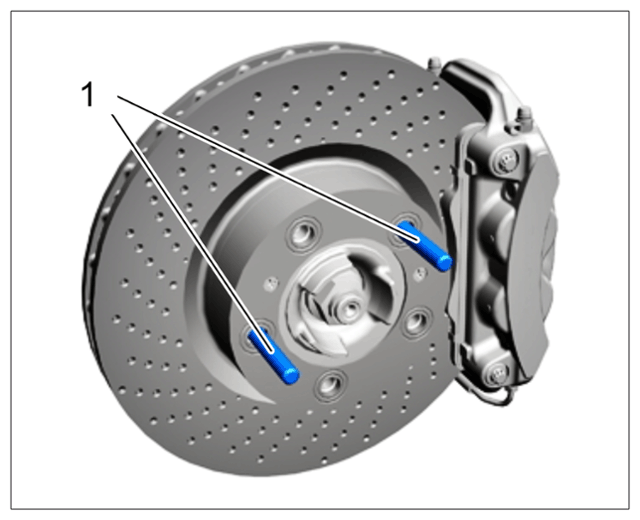

    For vehicles with PCCB:  Use assembly aids (twit assembly pins) -1-  .

    G14948314Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Wheel assembly pins (shown as an example)
