Preliminary Work

WARNING: This page is about a different variant/trim than selected.

Loosen axle nut (securing drive shaft to wheel bearing housing). Also apply the brake (2nd mechanic required) while the vehicle is stationary on the ground.
Lift the vehicle.
> 4X00IN LIFTING THE VEHICLE - article on "Lifting and lowering"
Remove rear wheel.
> 440519 REMOVING AND INSTALLING WHEEL - article on "Removing"

For vehicles with PCCB brake discs, use assembly aids (two assembly pins).
Remove covers over spring strut.

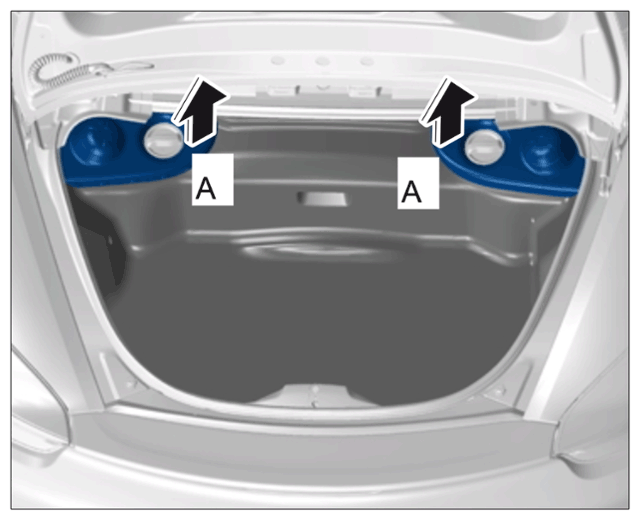

Boxster: Remove service covers in rear luggage compartment.

> WM, 700619 - REMOVING AND INSTALLING REAR LUGGAGE COMPARTMENT TRIM PANEL

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unclipping service covers

Boxster Spyder: Remove rear luggage-compartment lining

> WM, 700619 - REMOVING AND INSTALLING REAR LUGGAGE COMPARTMENT TRIM PANEL

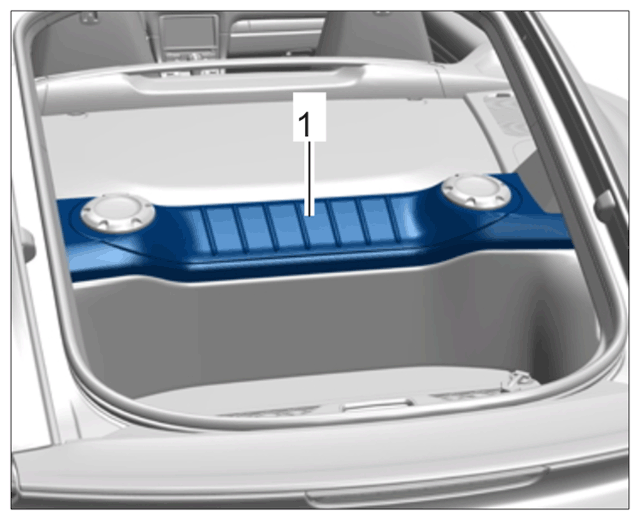

Cayman: Remove rear covers -1- .

> Refer to the appropriate Service Information for Removing and installing rear cover

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear cover

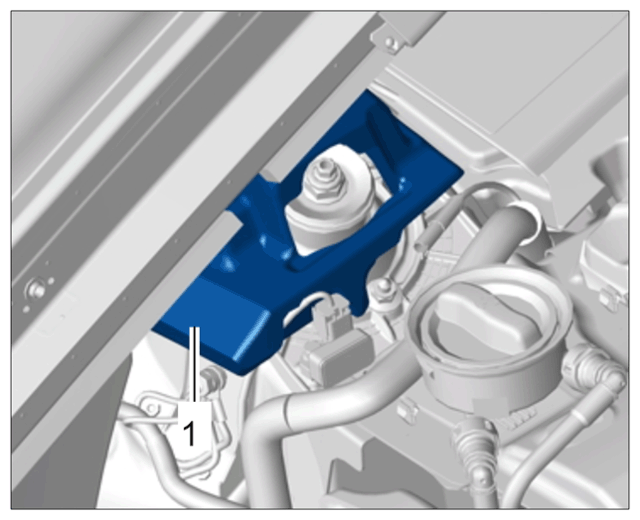

Remove cover over spring-strut mount -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing cover over spring-strut mount
