Vehicle Height
WARNING: This page is about a different variant/trim than selected.
Information
- The following values relate to the empty weight, i.e. full fuel tank/fluid reservoirs, vehicle with tools, but without driver or additional weights!
| Vehicle height worldwide | Standard chassis ± 0 mm (l-no. 029) | PASM ± 0 mm (l-no. 477) | PASM-10 mm (l-no. 475) | PASM -20 mm (l-no. 030) |
|---|---|---|---|---|
| Front-axle height (control values) | ||||
| 18-inch wheels | 131 +/-10mm | 131 +/-10mm | 121 +/-10mm | 111 +/-10mm |
| 19-inch wheels | 134 +/-10mm | 134 +/-10mm | 124 +/-10mm | 114+/-10mm |
| 20-inch wheels | 136 +/-10mm | 136+/-10mm | 126+/-10mm | 116+/-10mm |
| Front-axle height: Measure from road contact surface to -Blue area- on luggage comp. panel (cross member/bulkhead) + | ||||
| -Arrows- . | ||||
| Quick check: Distance from wing (lower edge) to center of wheel | 385 +/-10mm | 385 +/-10mm | 374 +/-10mm | 364 +/-10mm |

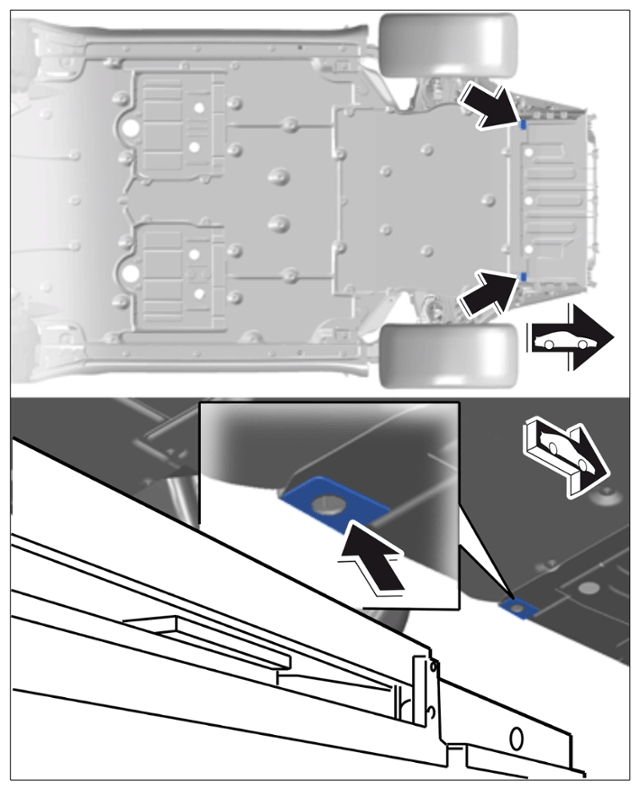

Measuring point for front-axle height
| Vehicle height worldwide | Standard chassis. ± 0 mm (l-no. 029) | PASM ± 0 mm (l-no. 477) | PASM-10 mm (l-no. 475) | PASM -20 mm (l-no. 030) |
|---|---|---|---|---|
| Rear-axle height (control values) | ||||
| 18-inch wheels | 164 +/-10mm | 164 +/-10mm | 154 +/-10mm | 144 +/-10mm |
| 19-inch wheels | 164 +/-10mm | 164 +/-10mm | 154 +/-10mm | 144 +/-10mm |
| 20-inch wheels | 163 +/-10mm | 163 +/-10mm | 153 +/-10mm | 143 +/-10mm |
| Rear-axle height: Measure from road contact surface to lower edge of diagonal brace (between the ribs) at wishbone fastening point -Arrow-. | ||||
| Quick check: Distance from wing (lower edge) to center of wheel | 395 +/-10mm | 395 +/-10mm | 384 +/-10mm | 374 +/-10mm |
Permitted longitudinal inclination of the vehicle: Maximum total deviations at front and rear =10 mm
Permitted transverse inclination of the vehicle: Maximum difference in height, left to right = 5 mm
Maximum wheel-load difference, right to left, on front and rear axle = 20 kg

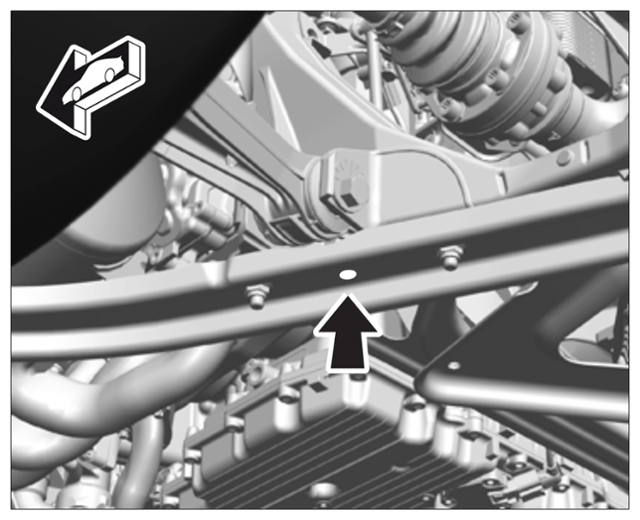

Measuring point for rear-axle height
