Adjusting Rear-Axle Toe
WARNING: This page is about a different variant/trim than selected.
- Turn toe eccentric adjuster -2-
as required after loosening the lock nut.
Then tighten lock nut on toe eccentric adjuster to > Tightening torque 110 Nm (81.1 ftlb.)
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Camber and toe eccentric adjuster
- 1.1
The hexagon nut on the toe eccentric adjuster is loosened and tightened using > 9847 - socket-wrench insert-3-together with
> 9626 - insert for torque wrench -4-
and commercially available torque wrench -5-.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

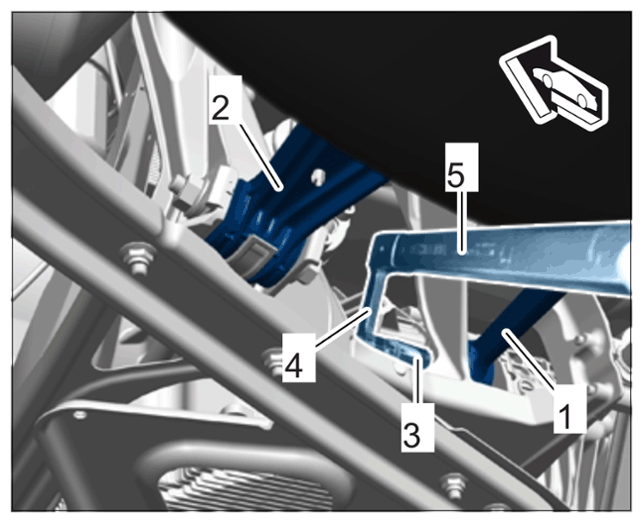

Loosening and tightening hexagon nut on toe eccentric adjuster
- Toe control arm
- Wishbone
- Socket-wrench insert 9847
- Insert for torque wrench 9626
- Torque wrench
