Adjusting Rear-Axle Camber
WARNING: This page is about a different variant/trim than selected.
- Turn camber eccentric adjuster as required after loosening the lock nut.
Then tighten lock nut on camber eccentric adjuster to > Tightening torque 110 Nm (81.1 ftlb.)
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

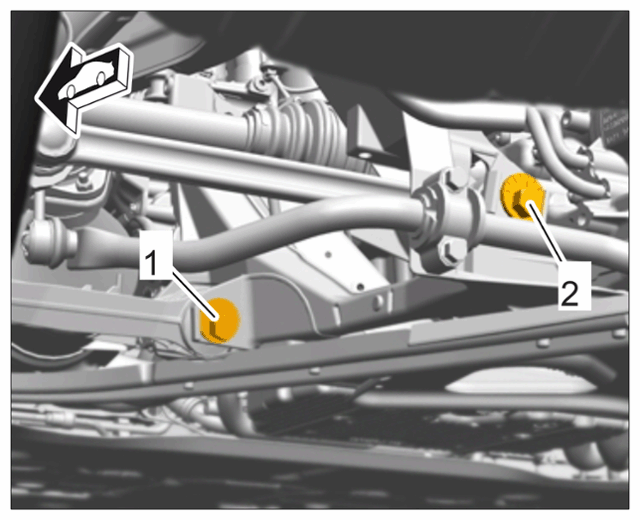

Rear-axle camber and toe eccentric adjuster
- Camber eccentric adjuster
- Toe eccentric adjuster
