Adjusting Front-Axle Camber

WARNING: This page is about a different variant/trim than selected.

To adjust the camber, open the front lid and move the technical equipment space cover into service position. Service position: Lift up the cover and engage the yellow support in the luggage compartment lid -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cover in service position Information

The spring-strut mount is made of aluminium, so do not tap it, but use a suitable lever to prevent damage.
The camber is adjusted by moving the spring strut in transverse direction -arrows-.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

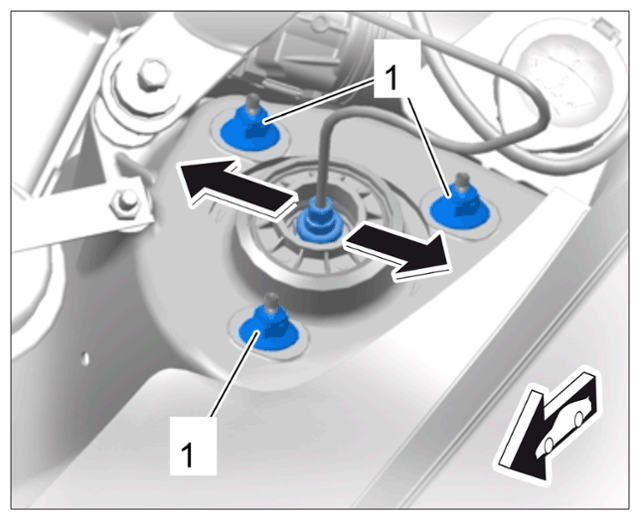

Adjusting front-axle camber
1. 2.1 Loosen three fastening nuts -1- on the spring-strut supporting mount and move the spring strut as required -arrows-.
2. 2.2 Tighten lock nuts i to > Tightening torque 33 Nm (24.3 ftlb.)
