Information
- The vehicle height at front and rear axle cannot be adjusted.
- For the height check, put the vehicle on a level surface or on the measuring platform (ready to drive, with full fuel tank and tools but without driver or additional weights).
- Compress (push down) vehicle at front and rear axles twice or three times and allow it to spring back freely.
- Measure from road contact surface to measuring point on the body.
- A quick check can be performed by measuring from the lower edge of the wing to the center of the wheel.

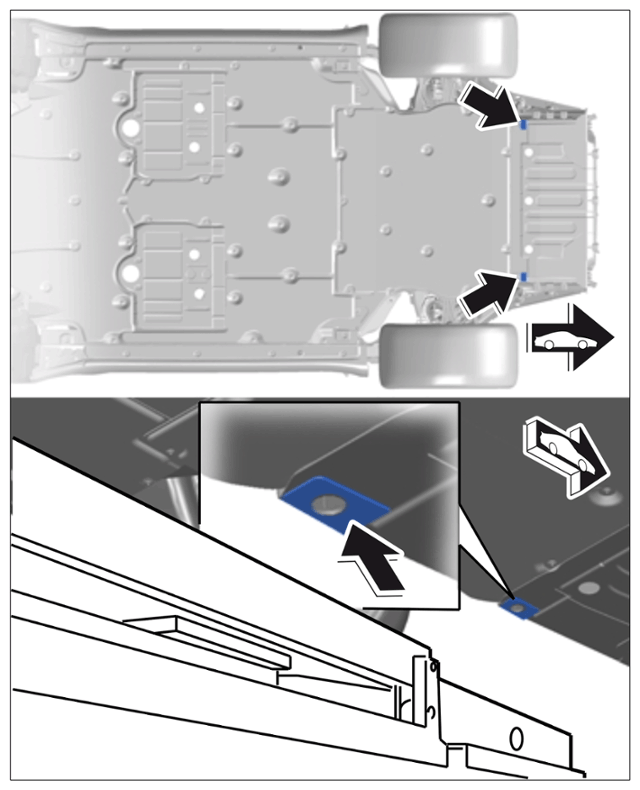

Front-axle height: Measure from road contact surface to measuring point on cross member/bulkhead of the body -arrows- .
Measuring point for front-axle height

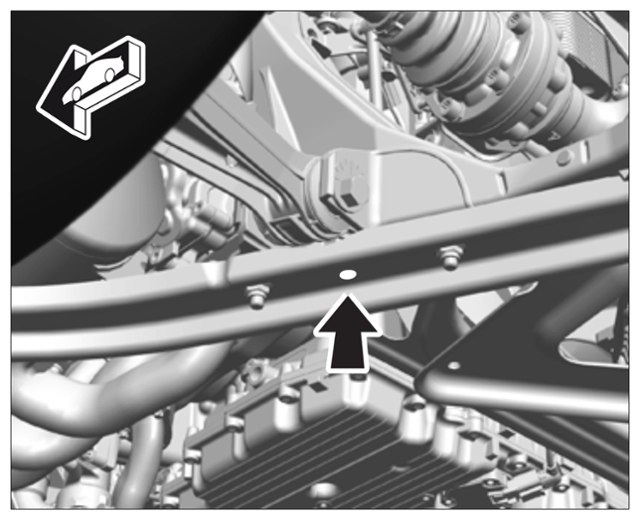

Rear-axle height: Measure from road contact surface to lower edge of diagonal brace (between the ribs) at wishbone fastening point -arrow- .
Measuring point for rear-axle height
